The day is coming when chances are you’ll stroll previous a robotic and do not know it was a robotic. Over years of engineering, we have given robots skeletons, brains, senses, and even a nervous system. Muscle mass have confirmed notably complicated (not that the opposite issues have been simple).
Researchers on the Harvard John A. Paulson Faculty of Engineering and Utilized Sciences have developed a technique for 3D-printing synthetic muscle-like filaments whose motion is successfully programmed immediately into the fabric.
Their work appears to be the closest to human-like muscle tissues that robotic muscle methods have gotten. Earlier than we proceed, you do not have to fret about competing for health club house throughout the robotic rebellion. It isn’t that sort of muscle … but. Now that we have gotten that out of the way in which, why trouble giving robotic muscle tissues within the first place?
The factor is, the pure world requires flexibility. Every thing from timber to octopuses bends and twists. We’ve additionally constructed a human world that calls for this identical adaptability. Infrastructures, clothes, instruments, and even social interplay have been all designed across the mechanics of sentimental organic our bodies.
Flexibility apart, interacting with our world is one cause robotics engineers maintain making an attempt to make machines extra human-like, equipping them with imaginative and prescient methods (eyes), microphones (ears), audio system (mouths), contact sensors, and lots of different methods.
These methods have been tremendously practical and efficient. Muscle mass, nevertheless, have been tough to copy. For people, muscle tissues are simply one other factor we overlook. You consider shifting your arm, and out of the blue it levitates as if by magic. Besides it isn’t magic. It’s an absurdly subtle organic actuation system. The identical muscle tissues that may gently information a paintbrush throughout a canvas can even kick down doorways, throw axes, carry out ballet, or catch falling glassware earlier than it hits the ground.
That stage of management is astonishing from an engineering perspective.
Conventional robots already transfer extraordinarily effectively utilizing electrical motors, hydraulics, and pneumatic methods. Nonetheless, these methods are often inflexible, mechanically complicated, and never notably swish. Actually fluid, natural motion has remained a lot tougher to breed.
In truth, researchers have truly developed mushy robotic muscle tissues earlier than. Pneumatic synthetic muscle tissues, for instance, use compressed air to create clean, biological-like movement. Different methods use heat-sensitive metals, electrically responsive polymers, magnetic supplies, or cable-driven tendon methods impressed by the human physique itself. Many of those are remarkably efficient.
The issue is the tradeoffs.
These methods sometimes require cumbersome exterior compressors, plumbing, or heavy help methods. Others want extraordinarily excessive voltages, generate extreme warmth, transfer slowly, or are tough to fabricate into complicated shapes. In lots of circumstances, the “muscle” itself is just one a part of a a lot bigger mechanical system.
The researchers might have discovered a extra elegant method. As a substitute of constructing robots with separate motors and shifting mechanisms, the staff developed a technique for 3D-printing synthetic, muscle-like filaments whose motion is successfully programmed immediately into the fabric.

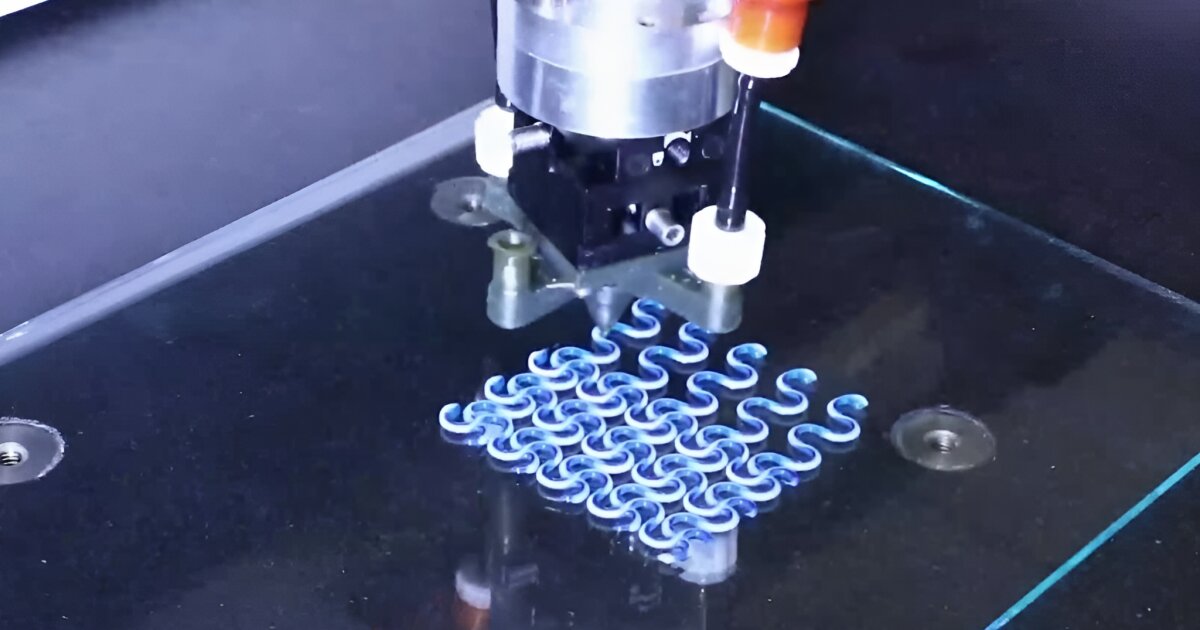

Lewis Lab / Harvard SEAS
Their system combines two forms of mushy supplies: an “lively” liquid crystal elastomer that modifications form when heated, and a passive elastomer that resists deformation. By printing each supplies side-by-side by a rotating nozzle, the researchers can exactly management how completely different elements of the filament will behave later.
The lively materials contracts alongside a most well-liked molecular path when heated. For the reason that passive materials resists this contraction, the mismatch forces the filament to bend, curl, twist, or coil. Rotating the nozzle throughout printing provides one other layer of management by writing helical molecular alignment patterns immediately into the construction.
A single filament may be programmed to straighten, spiral, tighten, shrink, or broaden relying on how its inside supplies are organized, with out gears, inflexible joints, or post-assembly mechanical methods.
The staff demonstrated this by printing mushy lattices and wavy filaments that deform in dramatically other ways underneath warmth. Some constructions expanded when heated, whereas others contracted. In a single demonstration, flat lattices reworked into dome-like shapes. In one other, the researchers created mushy grippers able to reducing onto objects, tightening round them, lifting them, and later releasing them.
3D-Printed, Muscle-Like Supplies That Twist and Coil on Demand
The researchers say the expertise may ultimately allow adaptive mushy robotic grippers, lively filters, biomedical gadgets, temperature-responsive constructions, and shape-morphing robotic methods. As a result of the method is appropriate with 3D printing, it additionally opens the door to extremely customizable architectures that will be tough to construct with standard actuators.
There are nonetheless main limitations, although. The system at the moment depends on warmth for activation, which means response occasions and power effectivity stay challenges. The constructions are additionally nonetheless experimental and nowhere close to prepared to interchange conventional robotic actuators in high-power purposes.
Supply: Harvard College
