Seeed Studio has launched an ultra-compact provider board for these trying to squeeze NVIDIA’s Jetson Orin Nano or Orin NX system-on-module into space-constrained tasks: the reComputer Mini Service Board.
“[The] reComputer Mini Service Board [has a] compact dimension appropriate for robotics and drone purposes,” the corporate writes of its newest NVIDIA Jetson accent. “[It] can be utilized in [a] 48V battery energy system (max 54V enter). Suitable with each Jetson Orin NX and Orin Nano [modules].”

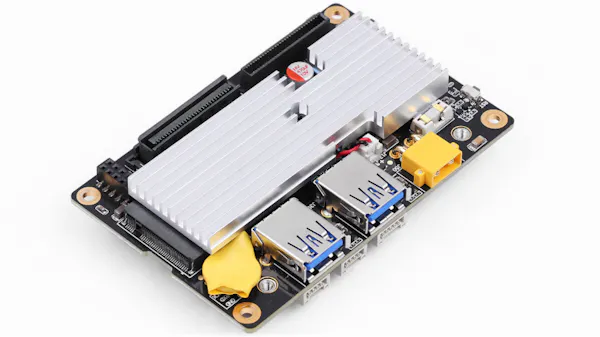

Should you might use an NVIDIA Jetson SOM in your subsequent challenge however cannot spare the area, this compact provider may very well be the reply. (📷: Seeed Studio)
Regardless of being solely marginally massive than the naked SODIMM-form-factor Jetson Orin Nano or Orin NX system-on-module it is designed to host, the reComputer Mini Service Board — dropped at our consideration by CNX Software program — comes with a powerful characteristic record: two USB 3.2 Kind-A ports providing 10Gb/s throughput, a USB 2.0 Micro-B port in System Mode, a USB 3.2 Kind-C port in Host Mode, and a JST five-pin header for a USB 2.0 port, a DisplayPort 1.4 output on the USB Kind-C connector’s Alt Mode, a pulse-width modulated (PWM) fan header, UART and debug UART buses, a real-time clock, and two 60-pin high-speed connectors and a 10-pin energy connector to be used with non-obligatory growth boards. There’s even an M.2 E-key slot for non-obligatory Wi-Fi and Bluetooth connectivity.
Regardless of its small dimension, the reComputer Mini Service Board crams within the options — together with an M.2 slot for Wi-Fi modules. (📷: Seeed Studio)
The corporate is positioning the provider as being focused in direction of these working with edge synthetic intelligence (edge AI) in space-constrained tasks, similar to autonomous drones and robots — and at simply 56×88mm (round 2.2×3.5″) it is actually a extra compact different to NVIDIA’s reference provider design. An XT30 energy connector can be included, supporting inputs from 12VDC to 54VDC with out the necessity for an exterior energy adapter.
The reComputer Mini Service Board is now accessible on the Seeed Studio retailer at $89 earlier than quantity reductions, not together with NVIDIA Jetson module.
