Taking an preliminary take a look at the cardboard, we seen that the fin stack was bent. We’re going to look at to see if it’s correctly secured or if there’s a manufacturing problem. At first look, we don’t suppose it ought to have an effect on efficiency an excessive amount of, however perhaps acoustics.

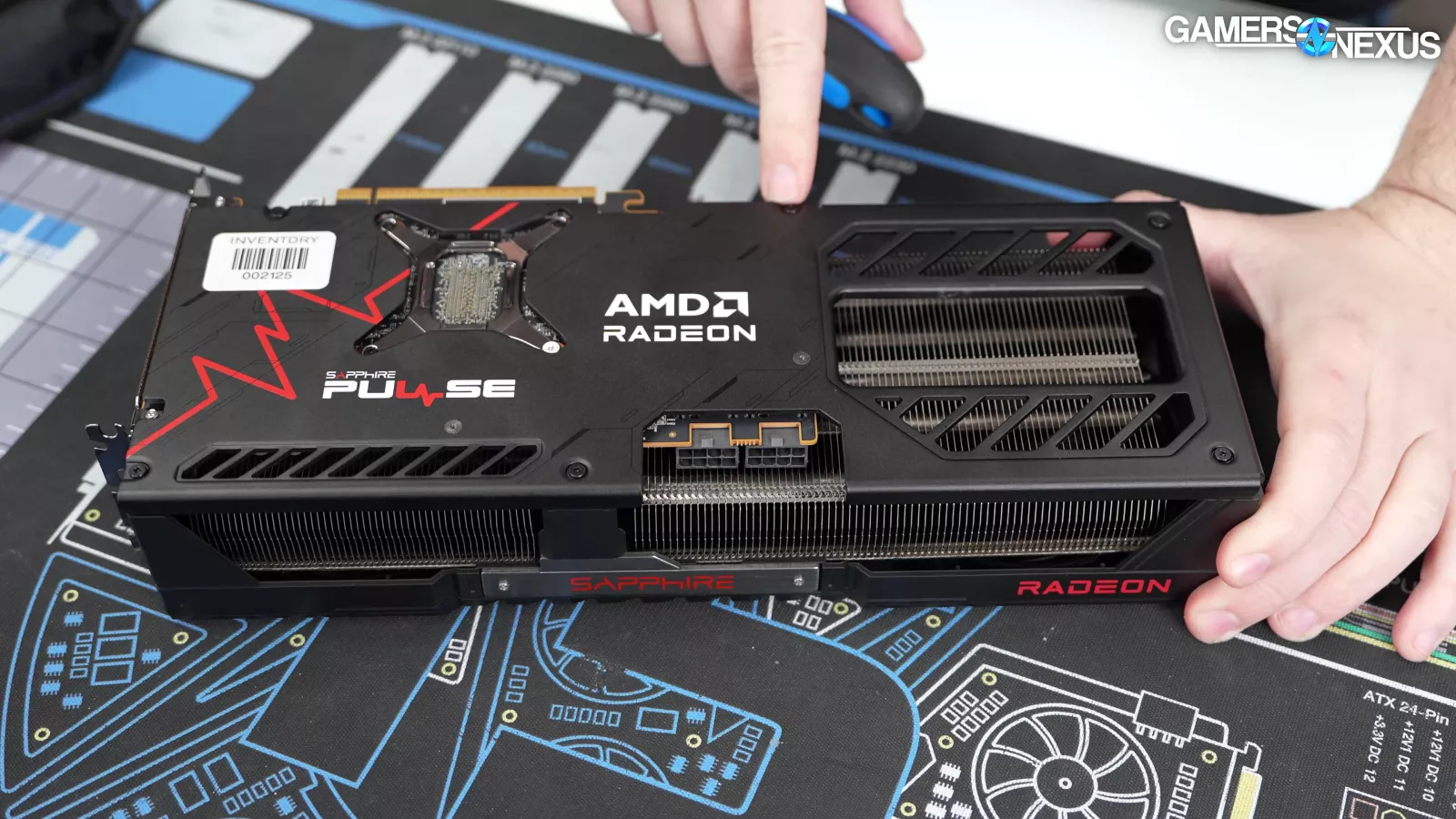

The again of the cardboard has a big flow-through space, which is nice, and it’s coupled with a single fan. That is completely different from NVIDIA’s answer on its FE playing cards the place it places the PCB within the heart of the cardboard and pushes air via the edges.
For comparability, the RX 9070 (non-XT) Pulse card has a smaller flow-through space with its shorter card design.
The followers on the 9070 XT Pulse are completely different sizes and the two followers on the skin spin in the other way from the center one.
The rear aspect of the cardboard has a perforated PCIe slot that’s speculated to let some air escape however in case you look carefully inside, you’ll discover mainly what’s a wall for the fin stack and that’s as a result of the fins are oriented vertically. This implies the air is generally going to return out the highest of the cardboard and never the underside.
Some air can even get pulled in via the entrance of the cardboard and pushed out the again. That is all fairly commonplace to this point.
Sapphire’s RX 9070 XT is a 3-slot card with a full 3-slot PCIe bracket. That is nice because it permits the cardboard to be a bit extra inflexible.
The cardboard doesn’t have any twin VBIOS or something fancy and it doesn’t have any bodily switches, nevertheless it does run two 8-pins.
In our evaluate of the cardboard, we didn’t find yourself operating our normal frequency, thermal, and acoustic checks as a result of we have been so centered on the GPU, the gaming efficiency, and energy consumption. So we’re going to incorporate a few of that knowledge on this story, however first, let’s get into the tear down.
Sapphire RX 9070 XT Pulse Tear Down
Prepping to open up the cardboard, we see a bunch of Phillips 1 screws on the backplate.

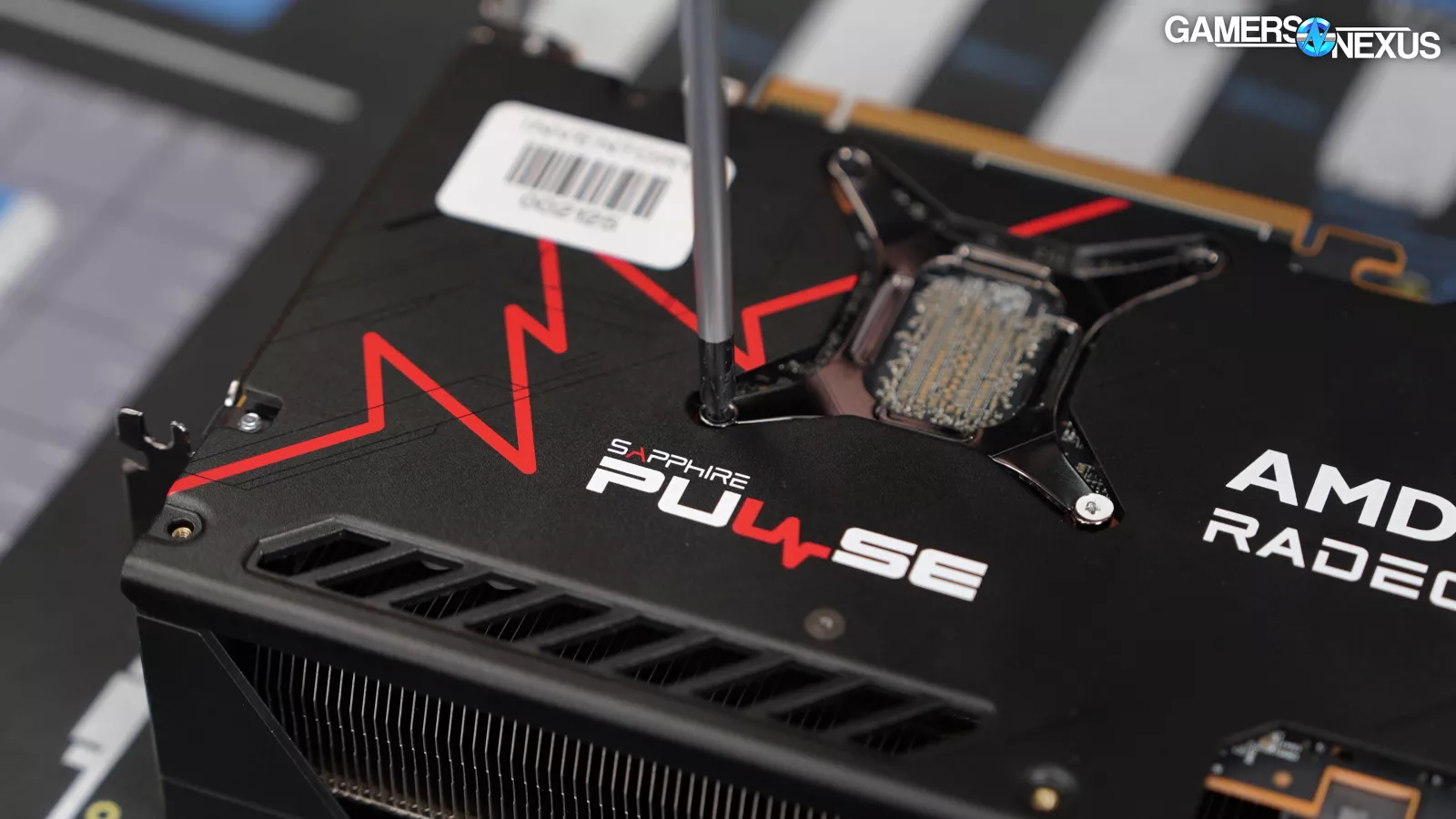

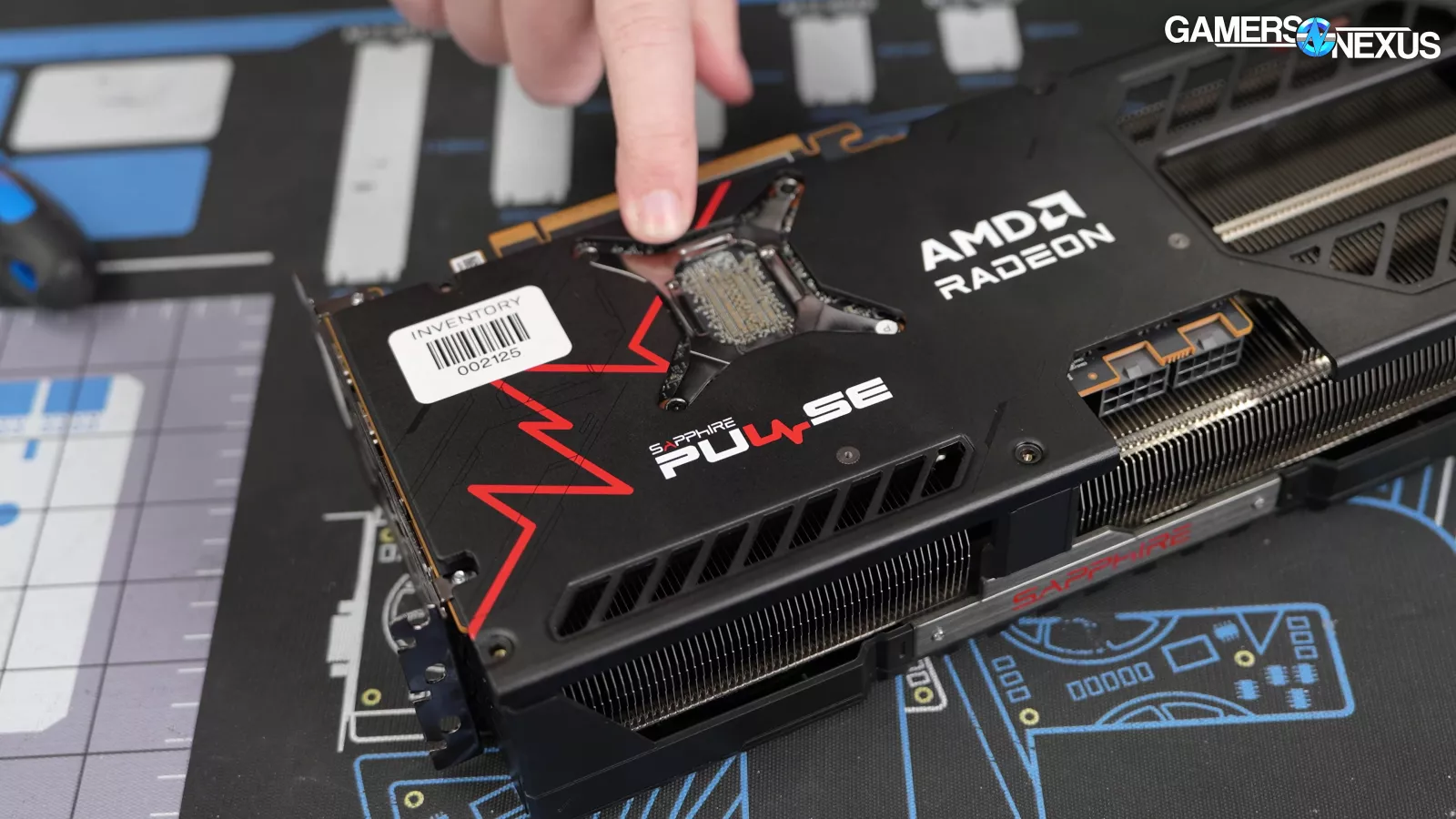

On the again of the cardboard, there are 4 screws for the retention mechanism, which holds the cooler to the GPU. We seen that one of many screws had a tamper seal, which merely had the letter “P” on it. We’re not precisely positive what that’s supposed to point, perhaps Pulse?
The leaf spring makes use of captive screws.

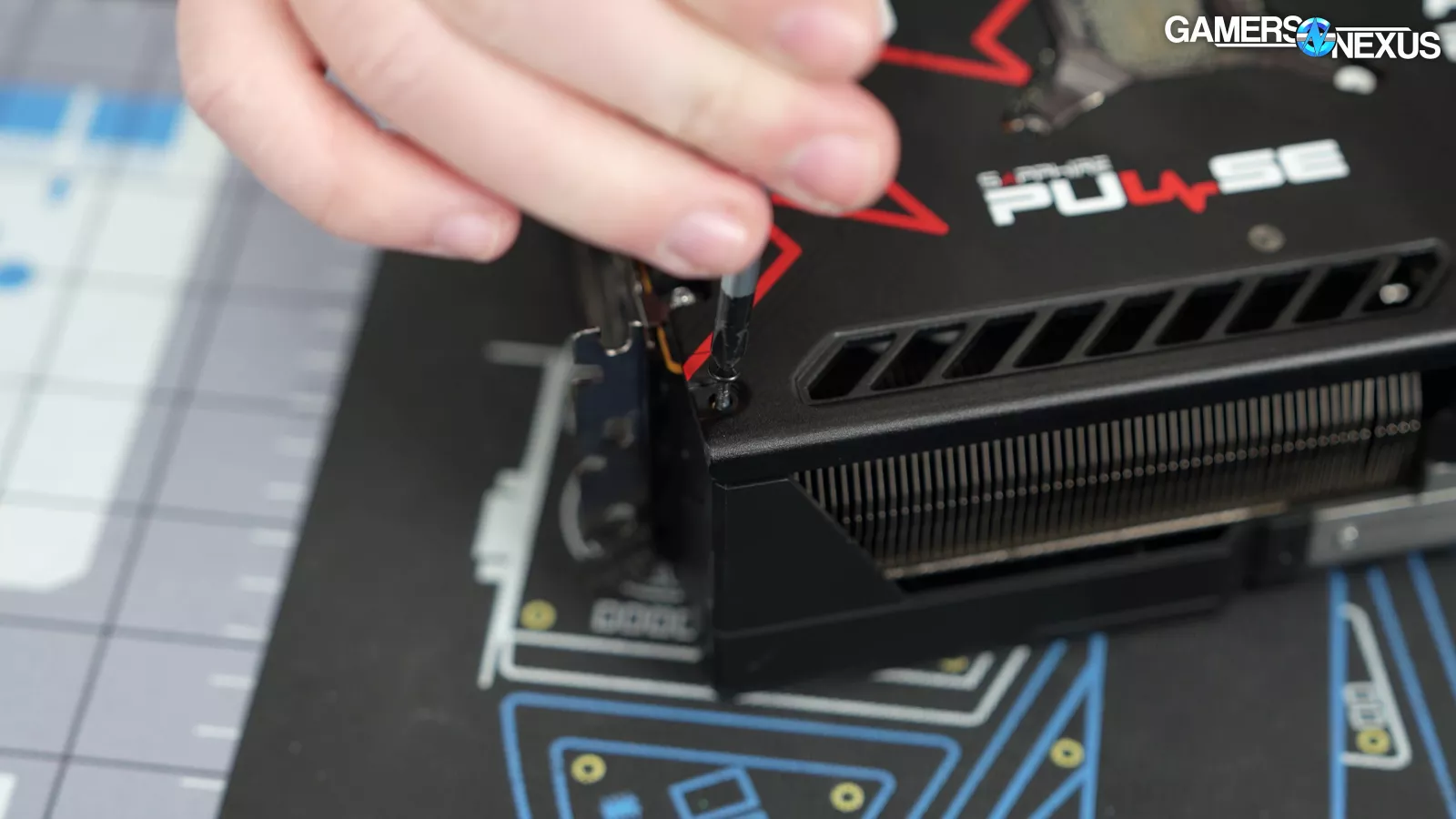

Earlier than opening up the cardboard, we’ve obtained to take away some previous few screws on the rear of the cardboard.

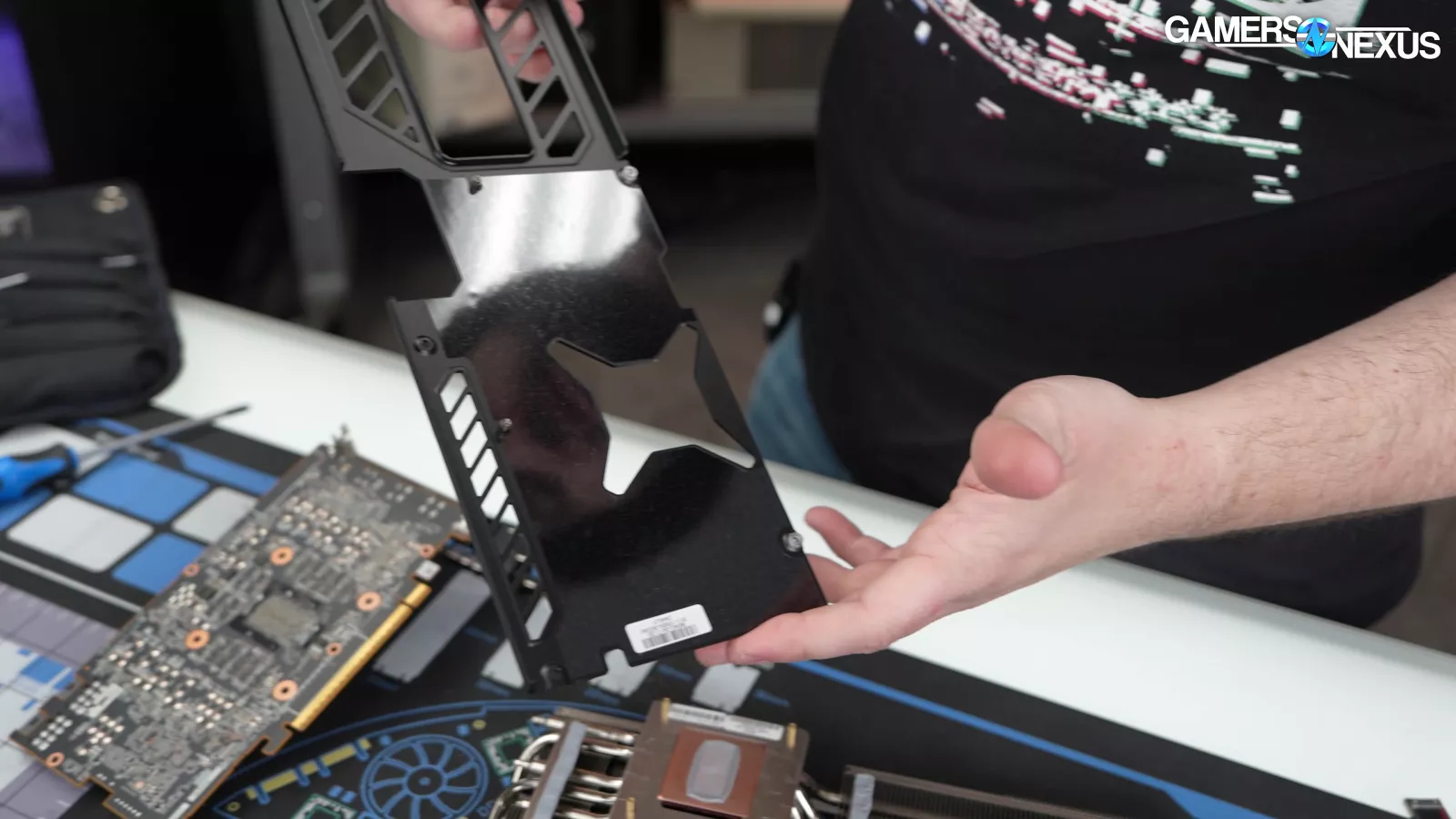

Opening up the cardboard and taking the body off, we are able to see that there are screws holding the followers in place, which might be eliminated for straightforward repairability.
The fan cable is accessible while not having to take the remainder of the warmth sink off, which is superior to see.

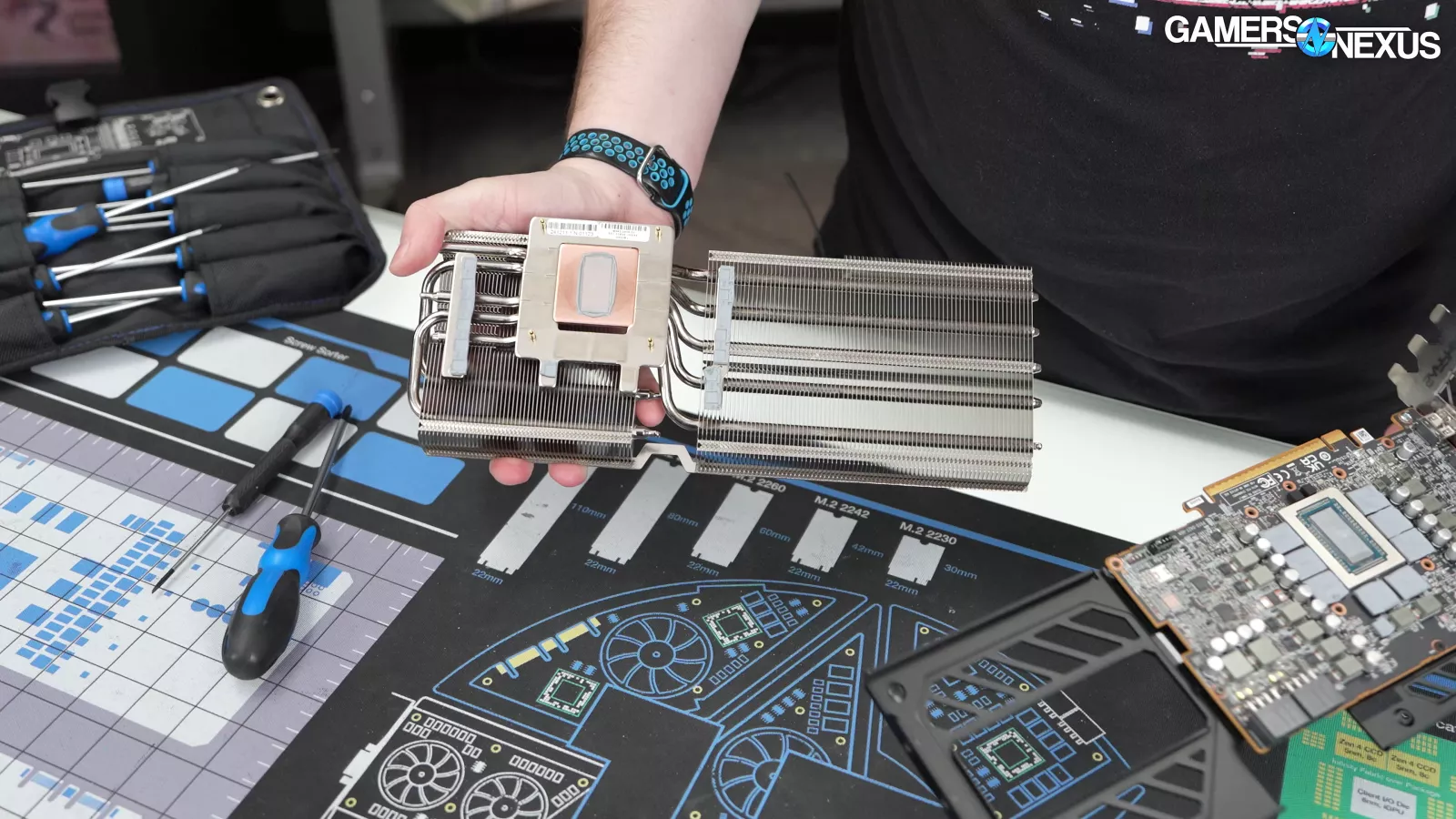

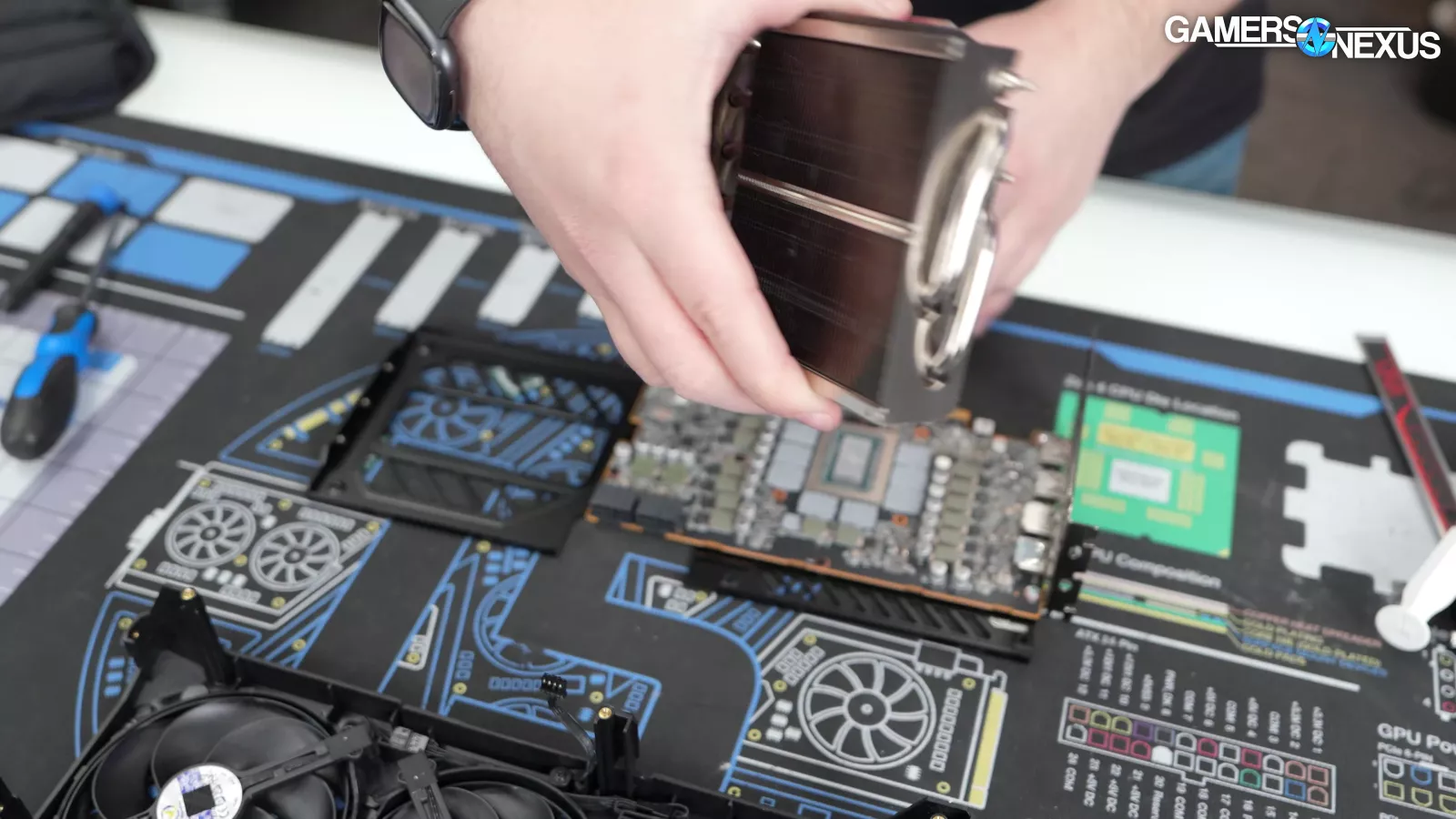

Shifting ahead, we are able to now take away the warmth sink off the cardboard, which exposes the GPU’s lengthy die.
The underside of the warmth sink has a plate for the reminiscence contact coupled with a typical copper coldplate.
On the PCB, there are a pair extra screws securing the PCB to the backplate. In complete, there have been 16 screws we needed to take away, which isn’t dangerous. Gaining access to simply the followers, nonetheless, requires eradicating 10 screws.

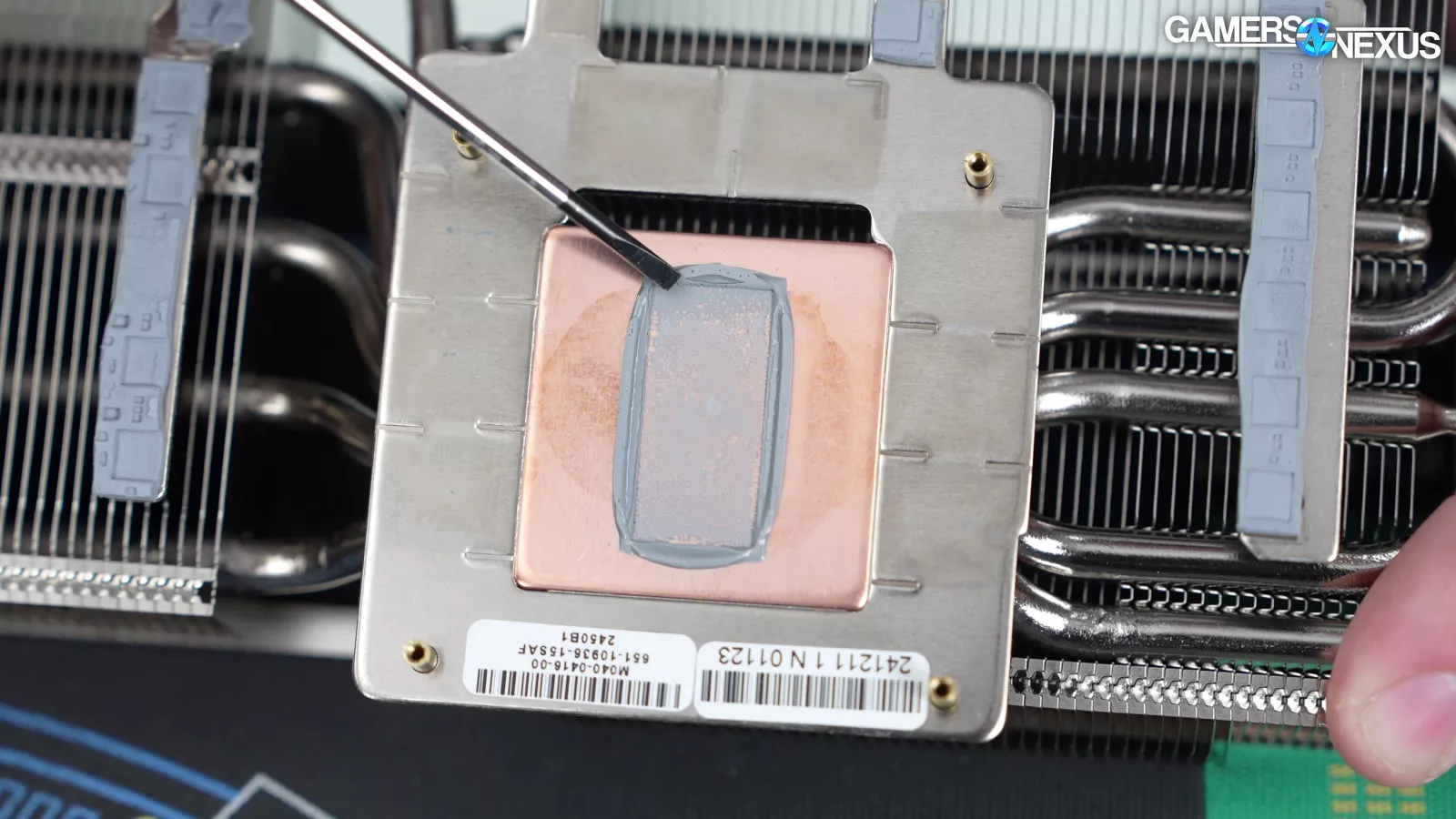

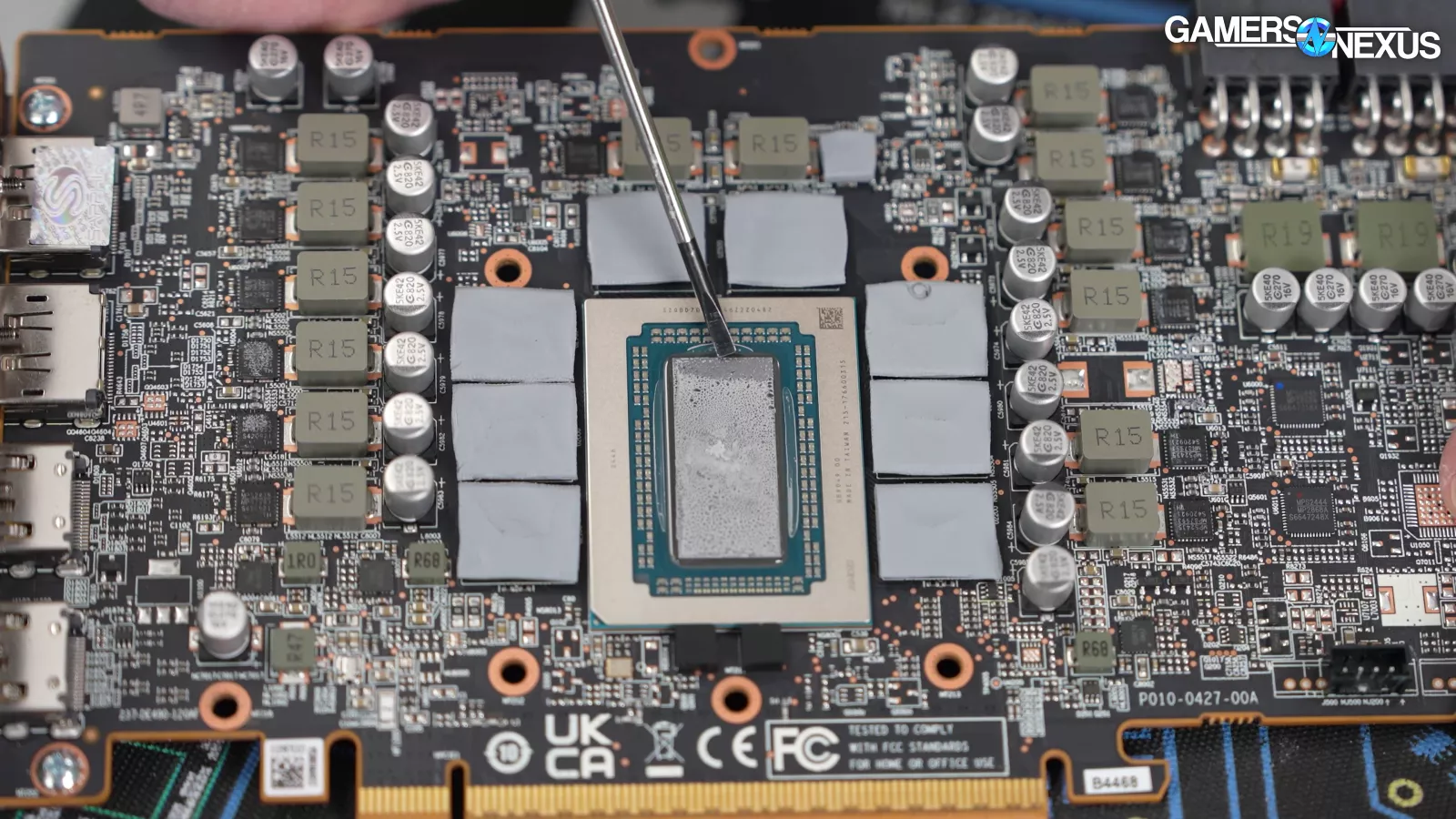

Having a look at strain distribution, we seen some uneven strain on one aspect of the GPU die. Trying on the copper coldplate, we are able to see that the contact right here was not that good and the strain was completely different from the highest to the underside. With the GPU, it’s actually vital that the entire die has contact so elements don’t die. Sapphire’s implementation of thermal paste isn’t going to kill something, however it’s dangerous contact.

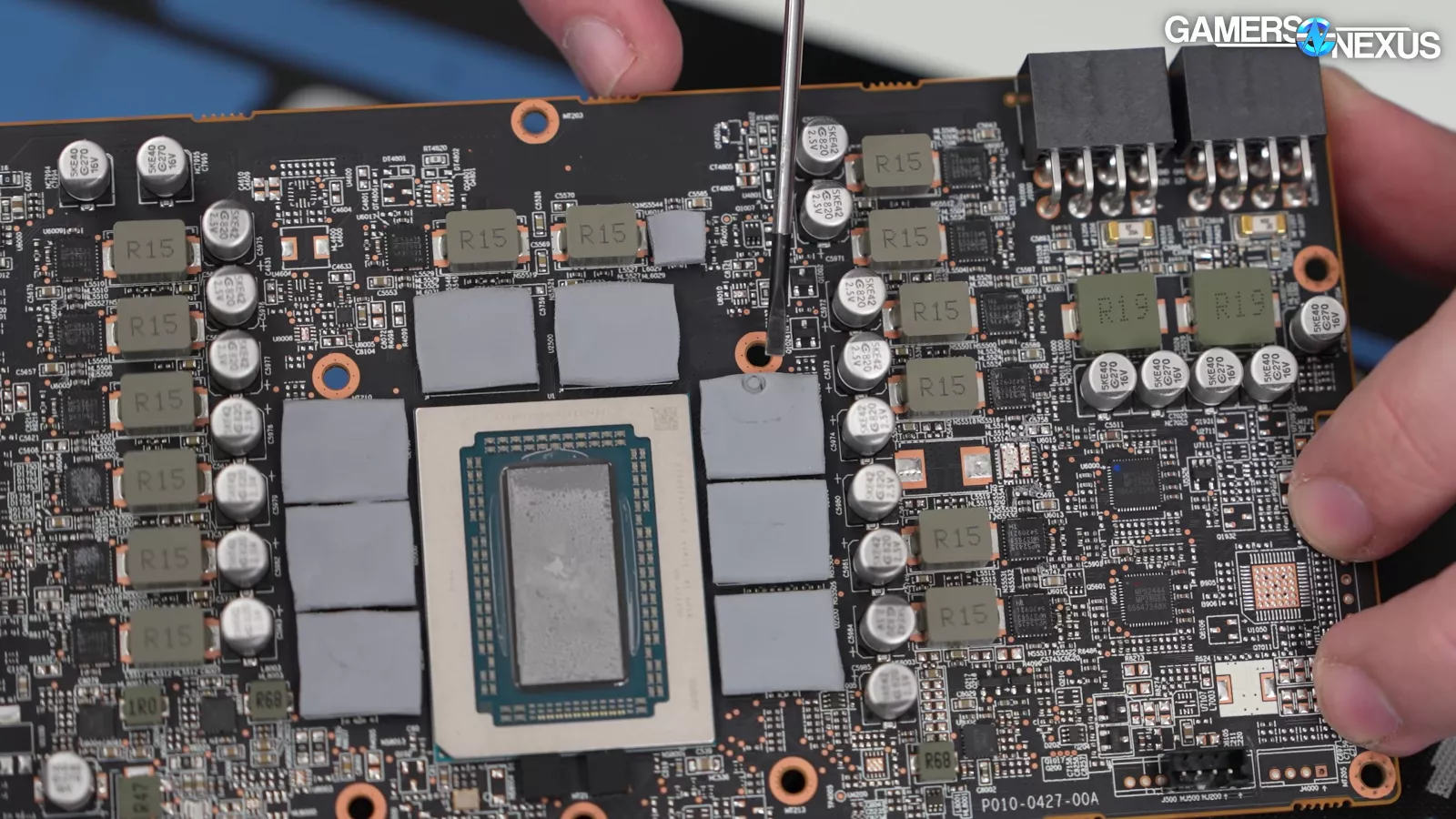

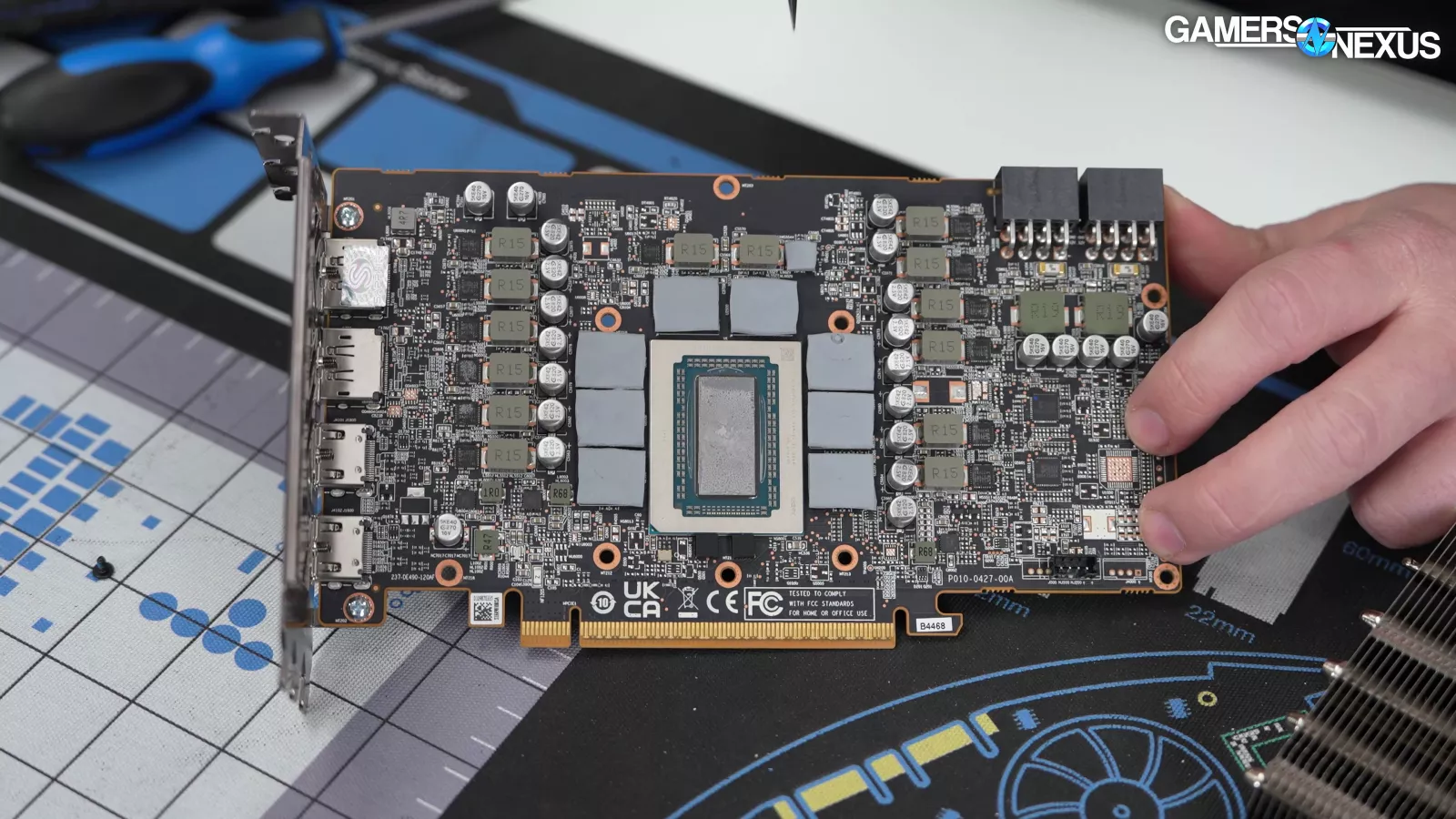

Having a look again on the PCB and analyzing the thermal pads, they give the impression of being fairly commonplace. Eyeballing it, they give the impression of being round 1mm thick. One of many thermal pads has a small round indentation on it, which is probably going only a small hand-assembled mistake.
Trying again on the chilly plate, we are able to see that it instantly contacts a number of the warmth pipes, which fits beneath the reminiscence. This helps with cooling.

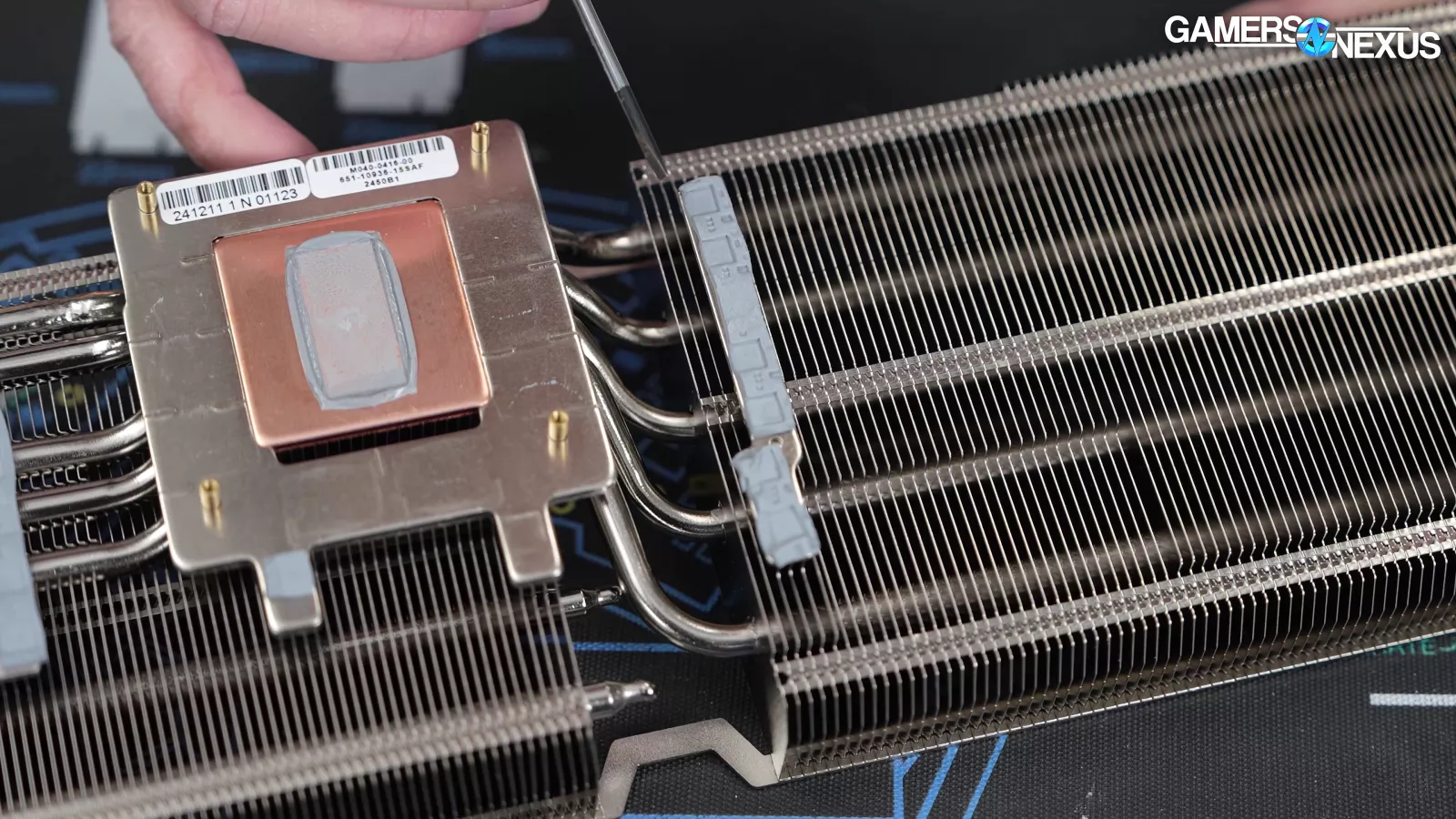

Instantly on the warmth sink itself, we are able to see extra thermal pads, that are for the MOSFETs. Analyzing the warmth sink, we are able to see that it’s very barely bowing down. This shouldn’t have an effect on thermal efficiency.

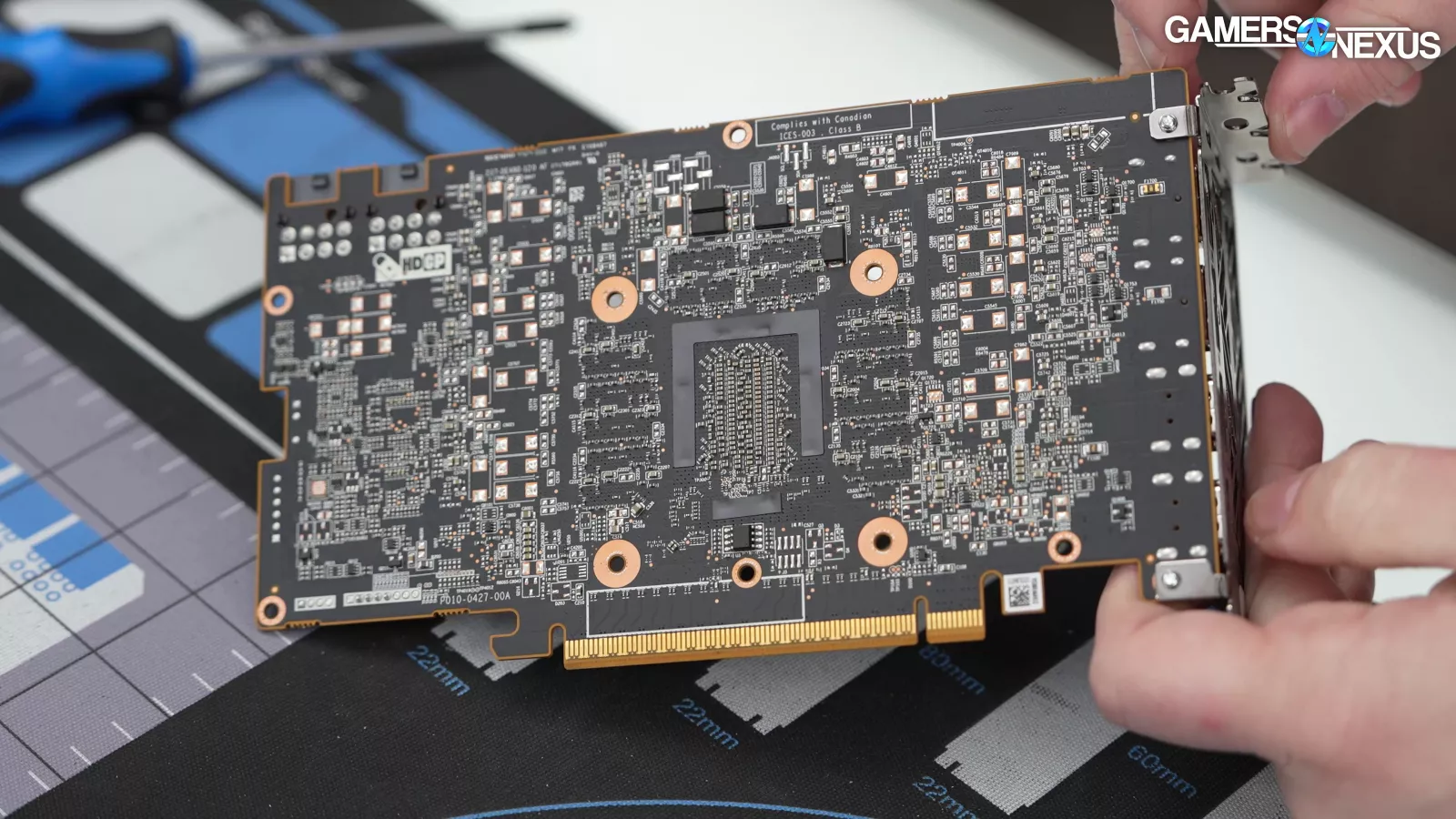

On the again of the PCB, there aren’t any thermal pads, which suggests they aren’t making use of the metallic backplate the cardboard has. That’s at all times a disgrace to see. This would possibly quantity to a few levels distinction typically, which might be frequent in lower-end fashions.

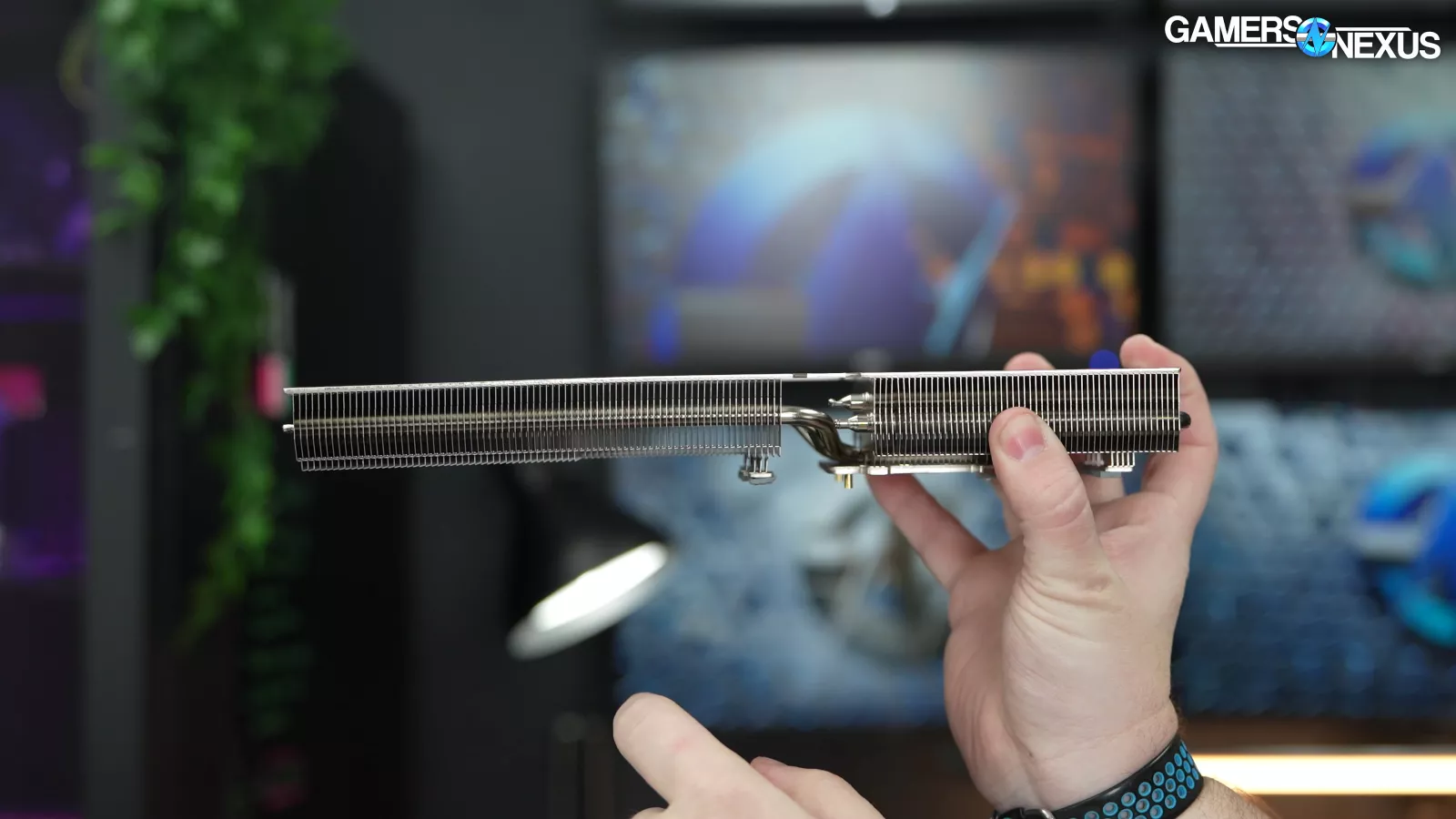

Total, the cardboard has quite simple development with a typical PCB and commonplace execution. It’s obtained 5 6-millimeter warmth pipes, which may be very typical. The cardboard makes use of a tried and true design that isn’t modern.
Thermals & Acoustics

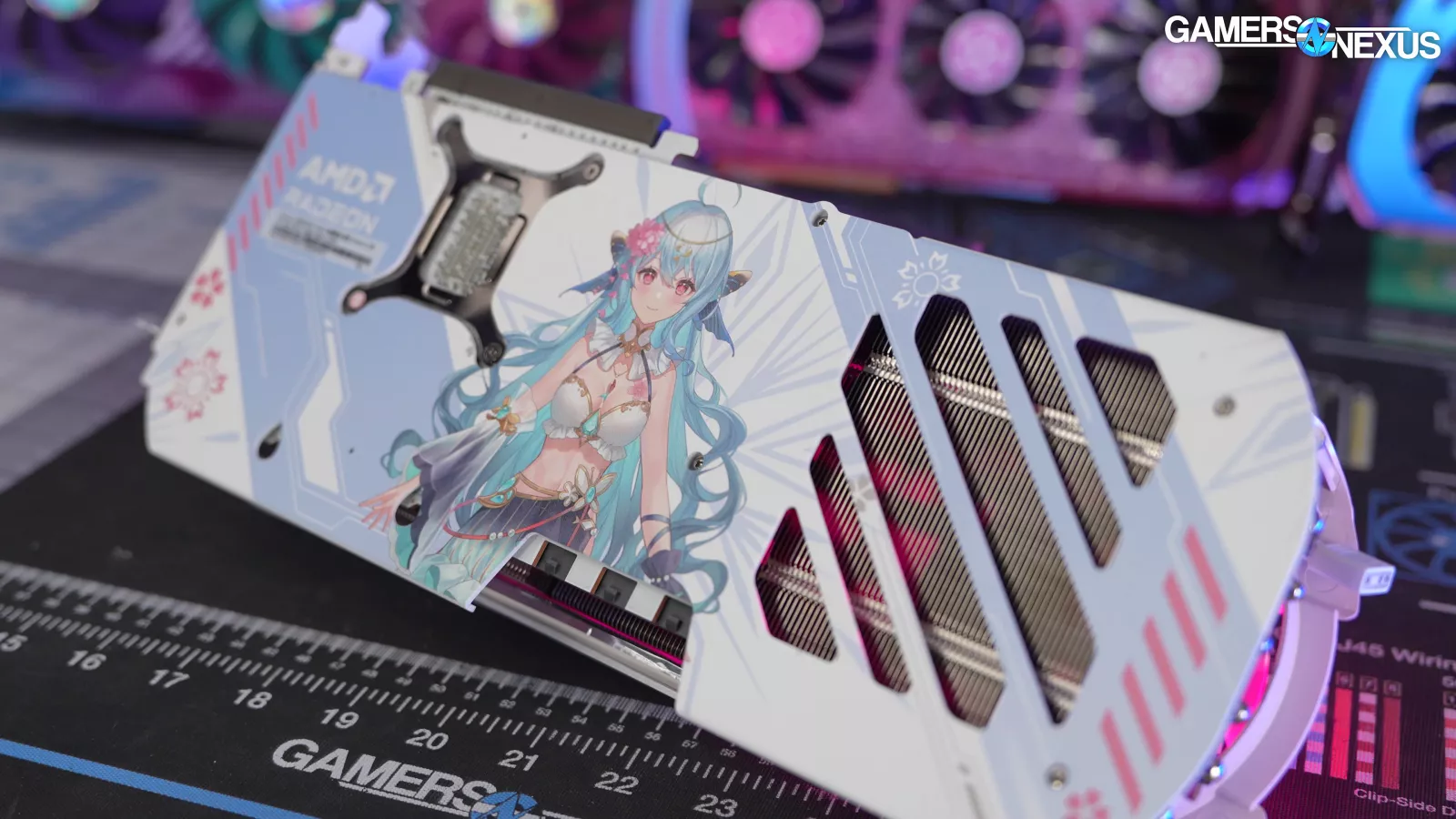

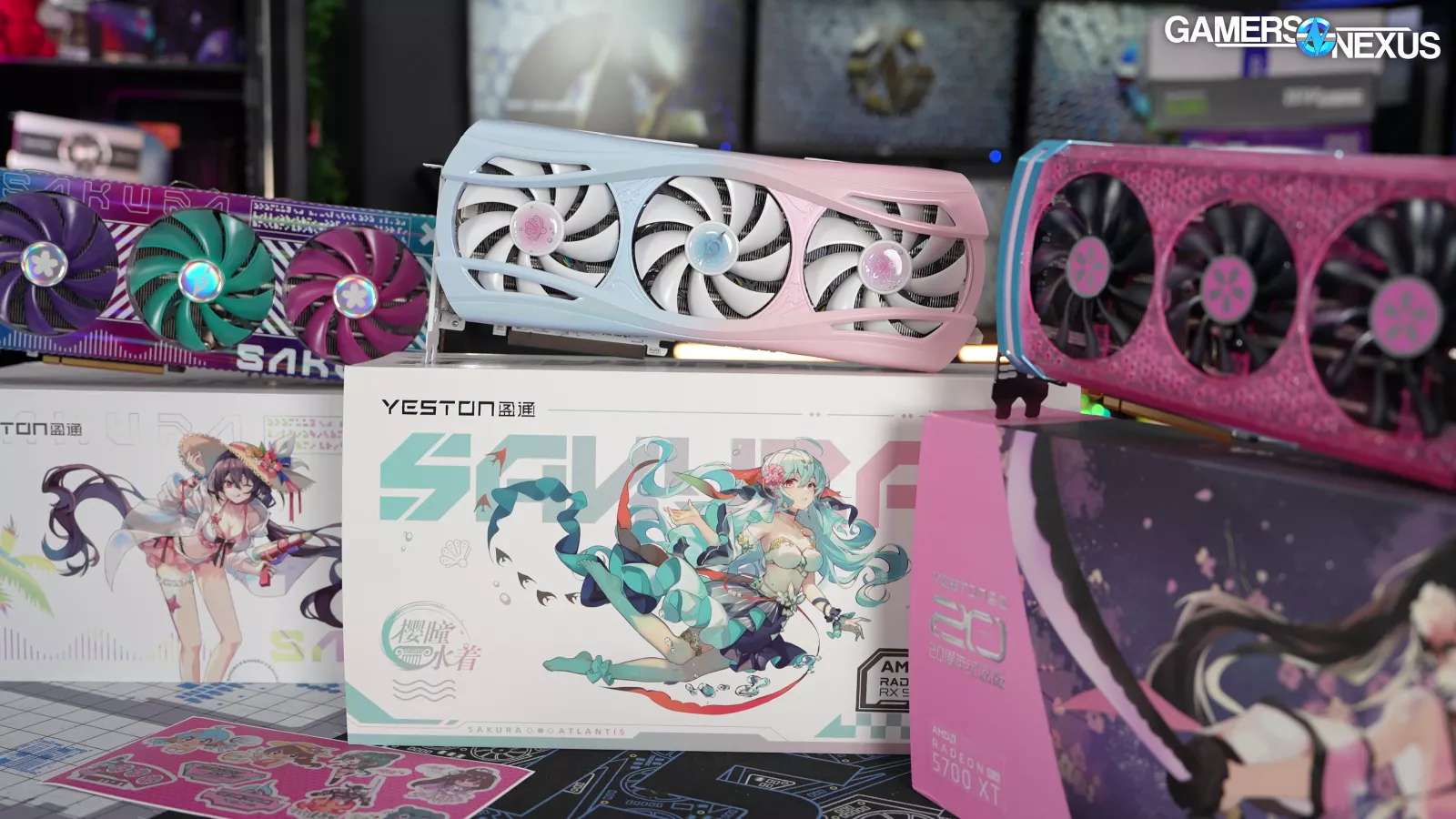

We have now a evaluate of the Yeston RX 9070 XT Sakura Sugar Atlantis OC, aka “Waifu Version,” developing quickly with absolutely detailed charts. These embrace this Sapphire card and the Atlantis, so we’ll hold these shorter in the present day.
Beginning first with the RPM-to-thermal response, we get this chart. The Sapphire RX 9070 XT Pulse’s GPU temperature hit about 56 levels Celsius for common temperature in a managed ambient of 21 C. That’s not dangerous. The hotspot ran at 81 levels, which can be truly not dangerous in an absolute sense. Having almost a 30-degree hole between them isn’t nice, however we’re starting to be taught that that is sadly frequent for this technology to this point. In Sapphire’s case, the lowered mounting strain on the high of the die doesn’t seem like making a measurable distinction within the hotspot-to-core delta as a result of the opposite two playing cards we’ve examined additionally exhibited this conduct however with extra even strain on the die. It simply appears to be a conduct this technology.
Both approach, it’s not in throttling territory and continues to be OK, however the reminiscence temperature is an issue: It’s operating at 90 levels Celsius. The rationale for this isn’t something past Sapphire’s cooler design being comparatively easy and its fan curve being relaxed as it’s turns into an issue.
This chart reveals the fan RPM as plotted in opposition to these temperature values. Sapphire and AMD really want to get this fan scenario below management. There’s no cause for it to behave this erratically. VBIOS sometimes controls fan conduct through temperature targets so that is inside Sapphire’s management, however AMD might additionally do extra right here. The Pulse’s fan blasts to 1,560 RPM and holds, drops to 1,400 and holds, then drops to 1,300 for five seconds, then climbs to 1,390 RPM for about 30-40 seconds, then all of the sudden drops precipitously to 1,100 RPM, then spikes to 1,258, then drops to 1,000 RPM, then climbs to 1,170, then drops to 1,130 and holds for a couple of minutes. It will definitely fluctuates just a few extra instances.
That is erratic conduct and we’ve hardly ever seen followers behave like this in a hard and fast, ongoing, unchanging workload. Sadly, that is extraordinarily noticeable as an finish person, since you’ll hear an irregular and annoying ramp/de-ramp quickly biking inside a 2-3 minute interval. It’d be higher if it went to the next pace and held. However Sapphire is operating its followers too gradual anyway, as proven by the 90-degree reminiscence thermals. As a result of it’s following the comparatively low 56-degree GPU temperature for the fan pace, the VBIOS isn’t capable of inform the followers to spin up quick sufficient to take care of the reminiscence temperature. This was truly an issue on older liquid-cooled playing cards a very long time in the past the place you’d have MOSFETs and reminiscence burnout, as a result of the core was operating cool sufficient, the followers weren’t ramping adequately. This resulted in sizzling reminiscence and VRM, however the card didn’t “know” that as a result of it was following the core temperature. This must be labored on.
Acoustics
Examined in our hemi-anechoic chamber, right here’s a take a look at the acoustics when the cardboard was at regular state (as soon as the fan truly settled). As a result of the followers have been hardly spinning on the finish of the check, permitting the reminiscence to hit 90 levels, the cardboard was extraordinarily quiet. It’s somewhat too near our noise ground (earlier than we improve our microphone, anyway), however we measured it at round 16.5 dBA at 1 meter. The 5090 FE is plotted for a comparability right here. This card additionally hit 90 levels on the reminiscence, however is operating a 575W warmth load on the core as an alternative of 304W. It’s additionally operating louder.
The Pulse is quiet, nevertheless it’s too quiet. Sapphire has a ton of room to spice up the noise with out it turning into noticeable. And bear in mind, you possibly can at all times manually tune it again down in case you’d somewhat incinerate your reminiscence in a case. 90 turns into 95 inside a case fairly quick.
GPU Frequency
Lastly, right here’s the GPU core frequency plot. This reveals the GPU hitting about 2,997 MHz at first launch of the workload, then settling round 2,916 MHz at regular state. AMD advertises an “as much as 2,970 MHz” spec. It’s not at that pace as soon as the workload is definitely settled, however on a technicality, it did hit or exceed 2970 MHz for about 10 seconds.
Sapphire RX 9070 XT Pulse Conclusion
We’re proud of how simple Sapphire’s RX 9070 XT Pulse was to disassemble and the entry to the followers is nice. There have been some QC points however nothing that might immediate us to return the cardboard and a few folks may not even discover these points.
As for the standard exterior of the tear-down, we already confirmed gaming efficiency in our evaluate of the 9070 XT and commented on all of that in a video known as pretend MSRP. For this mannequin particularly, Sapphire must work on its VBIOS tuning for the fan RPM to raised take care of ramping reminiscence thermals regardless of in any other case OK GPU core thermals. It has loads of room to ramp the followers greater and most customers wouldn’t discover that bump over the pace of their case and CPU followers.
We just like the meeting strategy and the benefit with which you may get into the cooler, particularly for changing followers with out disturbing the paste. This was performed properly by Sapphire. The meeting general was fairly good. There have been downsides, which included some QC stuff with the fin stacks being bent, nevertheless it doesn’t impression efficiency. The excellent news is that the fan pace might be adjusted both manually by customers or after gross sales by Sapphire with a VBIOS push…hopefully.
