Direct03xD
A 42-key diodeless wi-fi cut up: Direct03xD by lander03xD.
KBD.information
Revealed Might 25, 2026

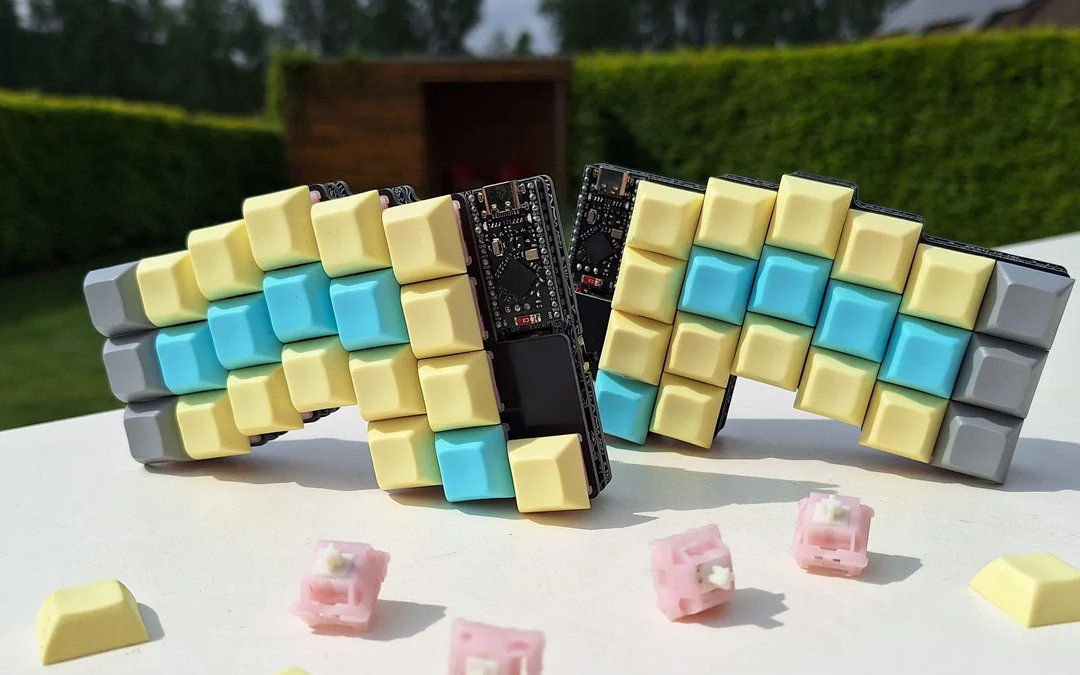

Lander03xD‘s Direct03xD is an open-source wi-fi true cut up keyboard with direct pin wiring.

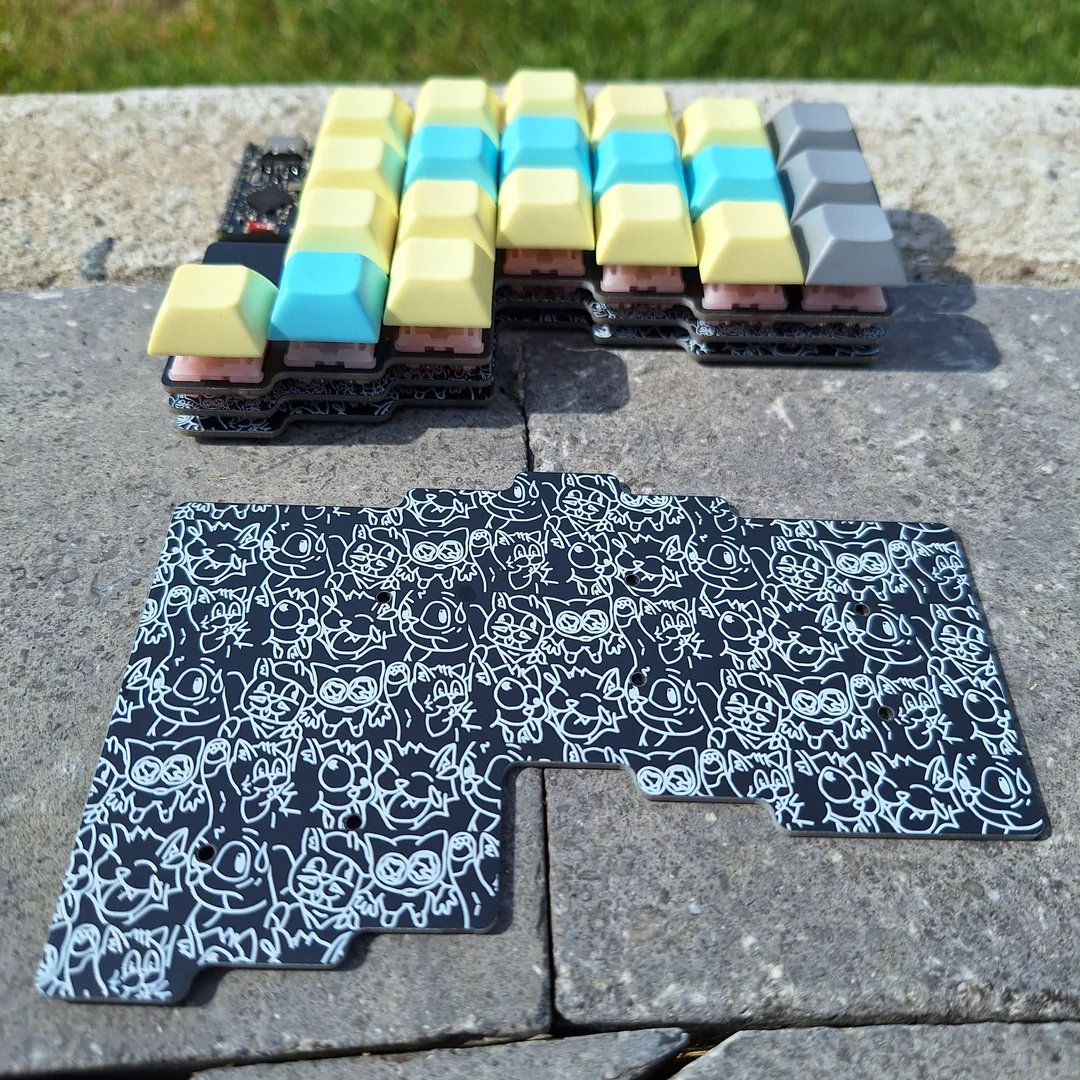

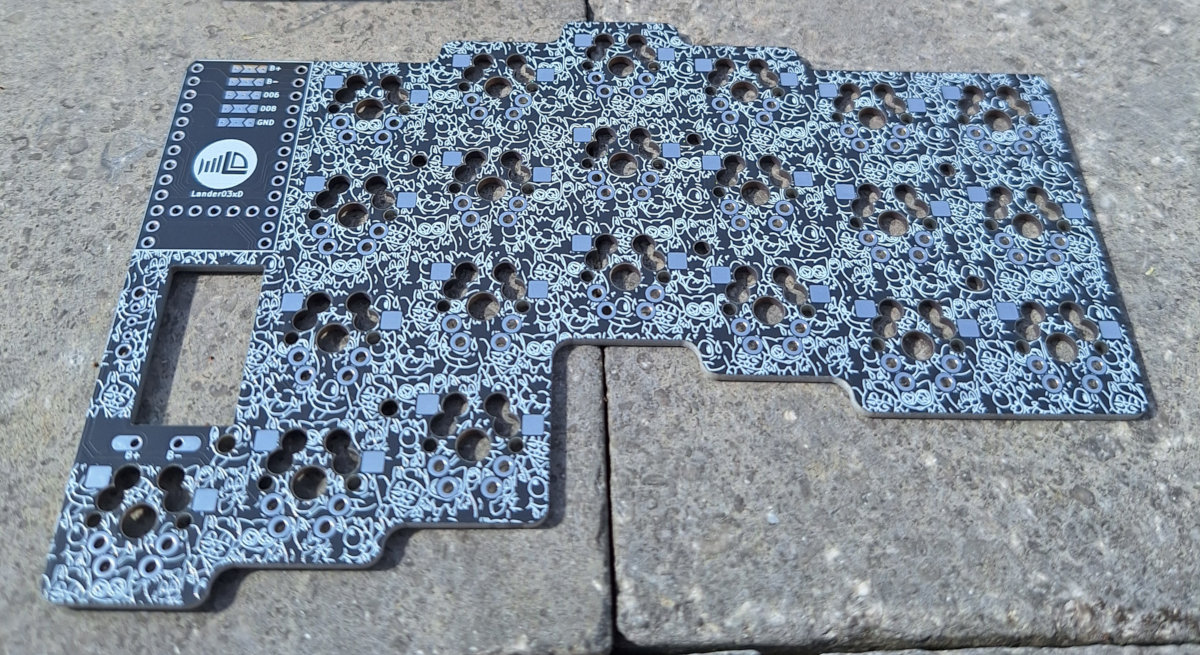

Direct03xD is a PCB sandwich board meant to be straightforward to solder. I added a sample on my backplate for some extra persona – Lander03xD_.
Options
- 42 keys (6×3+3, columnar cut up)
- MX switches, hotswap or soldered
- Good!Nano controller
- diodeless design
- reversible PCB
- PCB sandwich construction
- 601020 battery built-in within the sandwich
- ZMK firmware
Sources
Revealed on Mon twenty fifth Might 2026. Featured in KBD #212 (supply).
