Troubleshooting? Or do not know what is going on on with the large kitty paw key? You might attempt to manufacturing unit reset it.
The right way to manufacturing unit reset the large kitty paw key

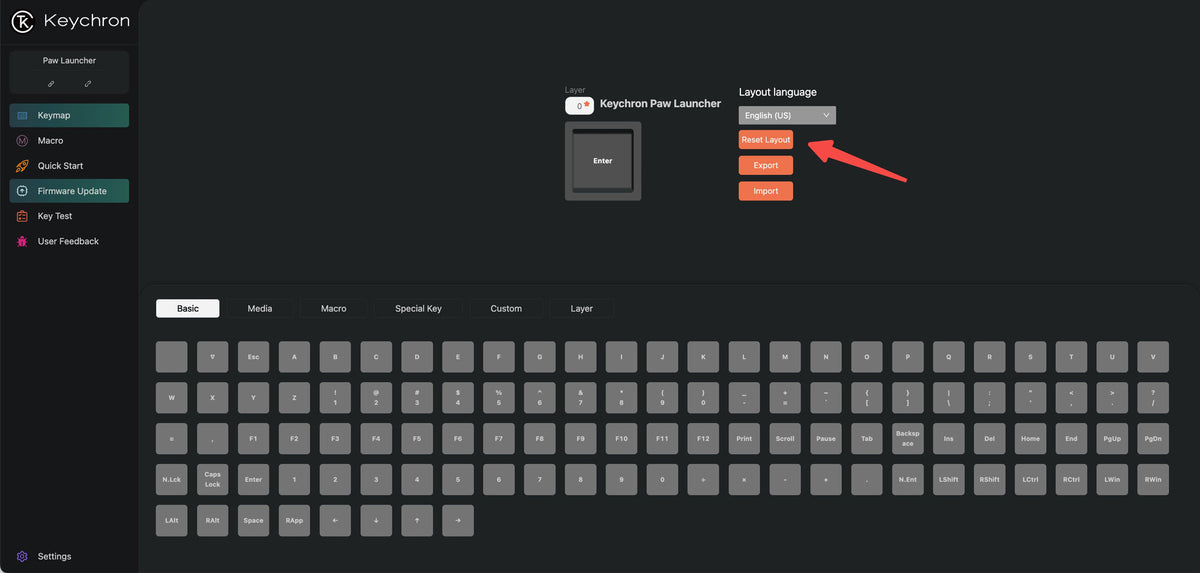

1. Open the launcher web site. Hyperlink：https://launcher.keychron.com/
2. Plug the facility cable into your massive kitty paw key.
3. Click on the ‘Join‘ button and choose the large kitty paw key of the corresponding mannequin. Please observe that the gadget title might be acknowledged as ‘Keychron Paw Launcher‘ by the pc.
The right way to flash the firmware of the large kitty paw key
Mac system:
1. Open the launcher web site. Hyperlink：https://launcher.keychron.com/
2. Plug the facility cable into your massive kitty paw key.
3. Click on the ‘Join‘ button and choose the large kitty paw key of the corresponding mannequin. Please observe that the gadget title might be acknowledged as ‘Keychron Paw Launcher‘ by the pc.
4. Click on ‘Firmware Replace‘ on the left.
5. Once you get to the following web page, please click on ‘Subsequent‘ to flash firmware, and if you should re-select the gadget, please click on Reconnect.
6. Within the present state, unplug the USB cable and let the gadget disconnect.
7. Whereas the gadget is disconnected, press and maintain the reset button on the PCB of the Massive Kitty Paw Key and concurrently join the gadget to the pc with the USB cable. Let the Massive Kitty Paw Key enter the state of getting ready to replace the firmware. (Click on to play the video under.)
8. Click on the ‘Match Gadget ‘ button under, choose the gadget that begins with WB, and join it.
9. After efficiently matching, click on the ‘Flash Firmware‘ button to start out updating the firmware.
(Don’t disconnect the Massive Kitty Paw Key from the pc whereas flashing firmware.)
10. Wait some time, ‘Firmware replace efficiently‘ is displayed on the prime of the display screen, Firmware Replace full.
(After finishing the “Firmware Replace”, you should unplug and replug the USB cable earlier than you need to use your Massive Kitty Paw Key as normal.)
Home windows system:
1. Open the launcher web site. Hyperlink：https://launcher.keychron.com/
2. Plug the facility cable into your massive kitty paw key.
3. Click on the ‘Join‘ button and choose the large kitty paw key of the corresponding mannequin. Please observe that the gadget title might be acknowledged as ‘Keychron Paw Launcher‘ by the pc.
4. Click on ‘Firmware Replace‘ on the left.
5.Then, Click on the ‘Obtain Toolbox‘ button under to obtain and unzip Toolbox.
6. After unzipping Toolbox, right-click the Toolbox icon and click on ‘Run as administrator‘ to open it.
7. Open it and click on on the menu ‘Device’.
8. Click on ‘Set up Drivers‘, proceed to click on ‘Sure’ to start out putting in firmware Drivers, and watch for the set up.
9. After the set up is full, you’ll be able to click on ‘Subsequent‘ to start out the method of flashing the firmware.
10. Once you get to the following web page, please click on ‘Subsequent‘ to flash firmware, and if you should re-select the gadget, please click on Reconnect.
11. Within the present state, unplug the USB cable and let the gadget disconnect.
12. Whereas the gadget is disconnected, press and maintain the reset button on the PCB of the Massive Kitty Paw Key and concurrently join the gadget to the pc with the USB cable. Let the Massive Kitty Paw Key enter the state of getting ready to replace the firmware. (Click on to play the video under.)
13. Click on the ‘Match Gadget ‘ button under, choose the gadget that begins with WB, and join it.
14. After efficiently matching, click on the ‘Flash Firmware‘ button to start out updating the firmware.
(Don’t disconnect the Massive Kitty Paw Key from the pc whereas flashing firmware.)
15. Wait some time, ‘Firmware replace efficiently‘ is displayed on the prime of the display screen, Firmware Replace full.
(After finishing the “Firmware Replace”, you should unplug and replug the USB cable earlier than you need to use your Massive Kitty Paw Key as normal.)
