Micron’s newest addition to the enterprise and information heart market is the 7600 Gen5 SSD, supplied in two variants. The 7600 PRO is optimized for read-intensive workloads like database queries or net servers, whereas the 7600 MAX, which we have now on the take a look at bench in the present day, is engineered for blended learn/write functions. Though the PRO model presents greater most capability, it helps as much as 1 drive write per day (1-DWPD). The 7600 MAX, however, is constructed for endurance, rated at 3-DWPD, making it a greater match for blended write-intensive environments.
The Micron 7600 MAX is a superb alternative for functions comparable to On-line Transaction Processing (OLTP), high-performance computing (HPC), AI workloads, information logging, content material creation, video surveillance, and sure large information analytics duties that require steady, frequent, and intensive information writes.
Each the 7600 PRO and MAX are supplied in a number of capability factors, however the MAX model reserves extra NAND for overprovisioning, leading to decrease usable capacities. For example: 1.92TB (PRO) vs. 1.6TB (MAX), 3.84TB vs. 3.2TB, 7.68TB vs. 6.4TB, and 15.36TB vs. 12.8TB. This highlights the trade-off between the 2; the PRO prioritizes capability, whereas the MAX focuses on endurance and sustained efficiency. Two SSDs, every tailor-made for distinct enterprise workloads.

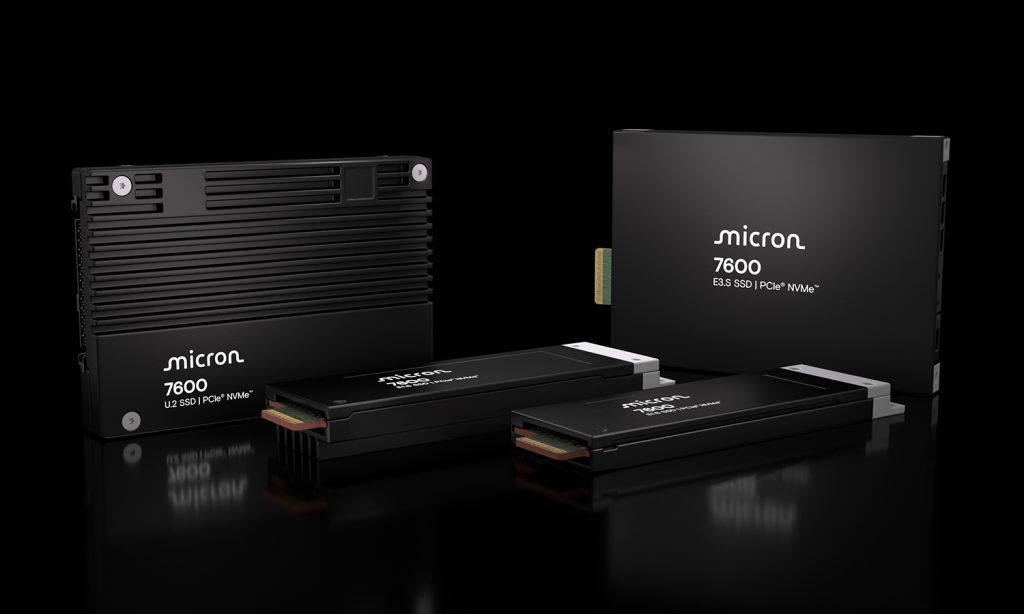

The Micron 7600 is a PCIe 5.0 (Gen5) x4 (4-lane) SSD that’s out there in 2.5″ x 15mm U.2 , E1.S and E3.S kind components. Each variations include a 5-year restricted guarantee with the situation that the PRO is restricted to 1-DWPD use whereas the MAX can be utilized as much as 3-DWPD. We are able to discover the 7600 PRO 7.68TB SSD out there on-line for $1061 with the MAX model a bit greater at $1166. Test Amazon.

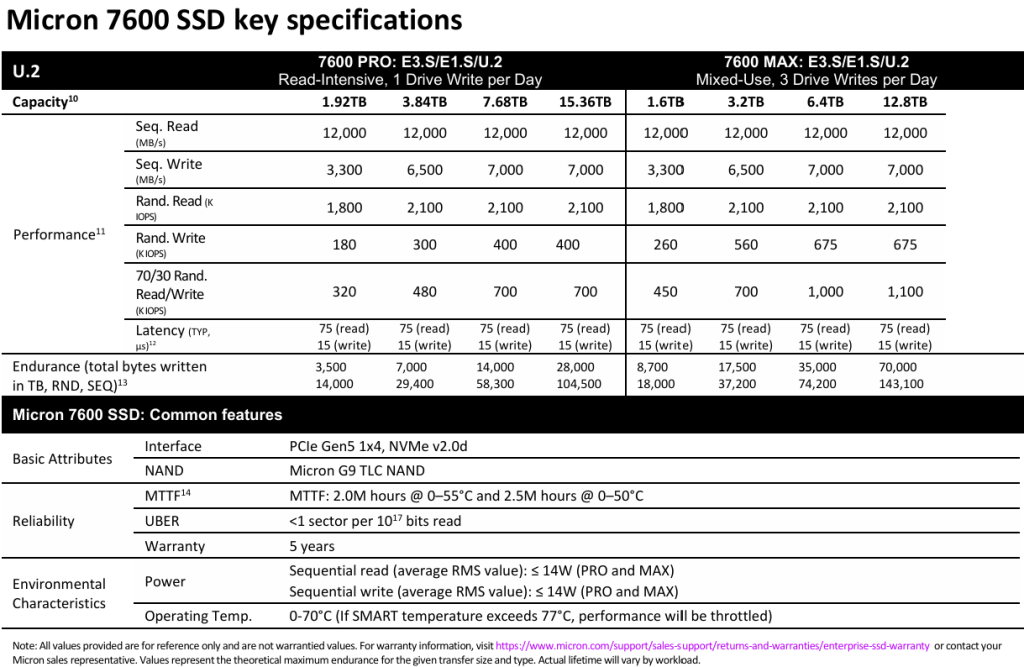

Our 7600 MAX pattern delivers spectacular efficiency, with as much as 12GB/s sequential learn and 7GB/s sequential write speeds, together with as much as 2.1 million random learn IOPS and 675K random write IOPS. These figures can range relying on chosen capability and whether or not it’s the PRO or MAX variant. The efficiency hole turns into particularly noticeable in demanding workloads. For instance, in 4K random write testing, the MAX achieved an impressive 745,690 IOPS, considerably surpassing the PRO’s rated 400K IOPS. The chart beneath from Micron supplies an in depth comparability of efficiency and endurance throughout totally different variations and capacities:

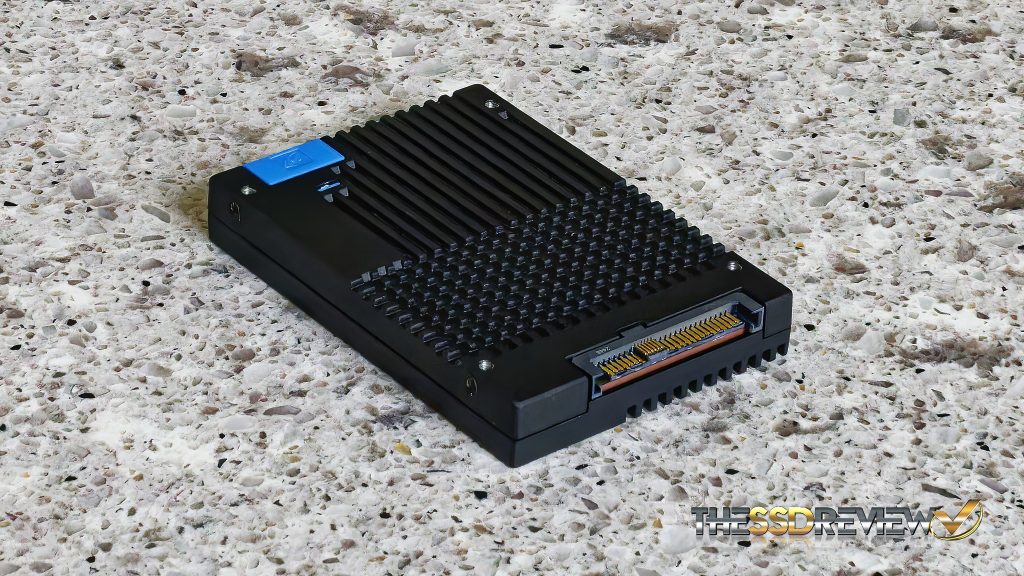

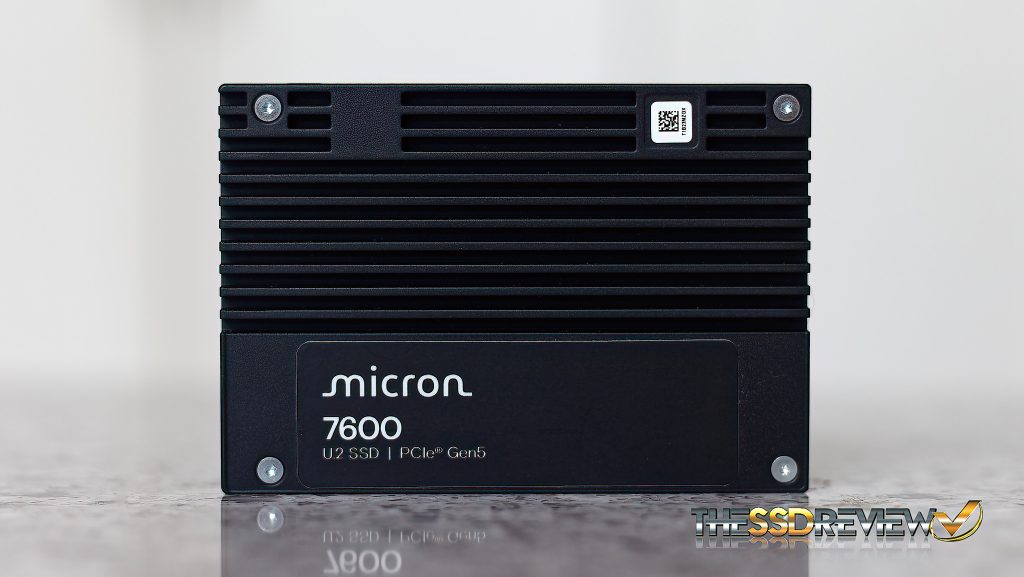

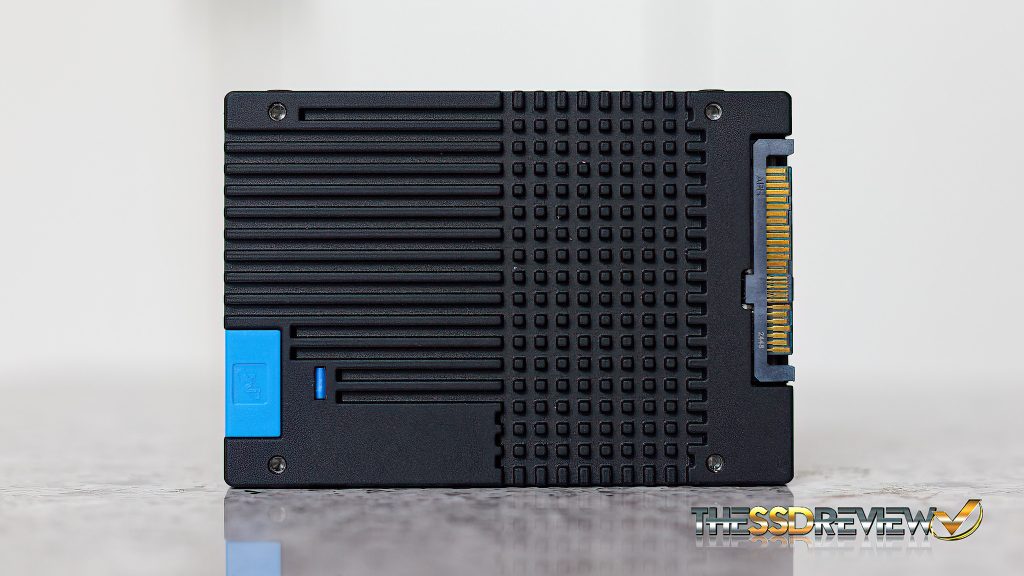

The 7600 encompasses a glossy, flat black aluminum casing with built-in ribs designed to boost exterior warmth dissipation. The enclosure consists of two items secured by 4 T4 Torx screws. Inside, you’ll discover a printed circuit board (PCB) housing a Micron-designed 16-channel controller ASIC (Utility-Particular Built-in Circuit), together with Micron’s personal NAND elements, which embody eight packages of Micron’s newest Ninth-generation (G9) 276-layer 3D TLC NAND flash and a Micron DRAM cache chip.
This superior reminiscence makes use of a 6-plane structure, enabling extra simultaneous operations and thereby boosting general throughput. Moreover, the NAND operates at an industry-leading switch price of three.6 GB/s whereas retaining energy consumption beneath 14W.
The Micron 7600 Gen5 SSD household characteristic set contains energy loss safety,, enterprise information path safety, TCG Opal v2.02, OCP 2.6, and firmware replace with out reset. It’s a NVMe 2.0 SSD that features SED with AES 256-Bit {hardware} encryption, Micron’s Safe Encrypted Setting (SEE), FIPS 140-3 Stage 2 and TAA compliance, together with SPDM 1.2 system safety.
