We’ve completed one thing really sudden, and one thing we by no means imagined potential. Micron has generously offered us with two of their newly launched, cutting-edge 1y LPDDR5X SDRAM (Synchronous Dynamic Random-Entry Reminiscence) cellular chips, giving us the chance to showcase the quickest, most power-efficient, and most compact reminiscence bundle accessible on this planet right now.

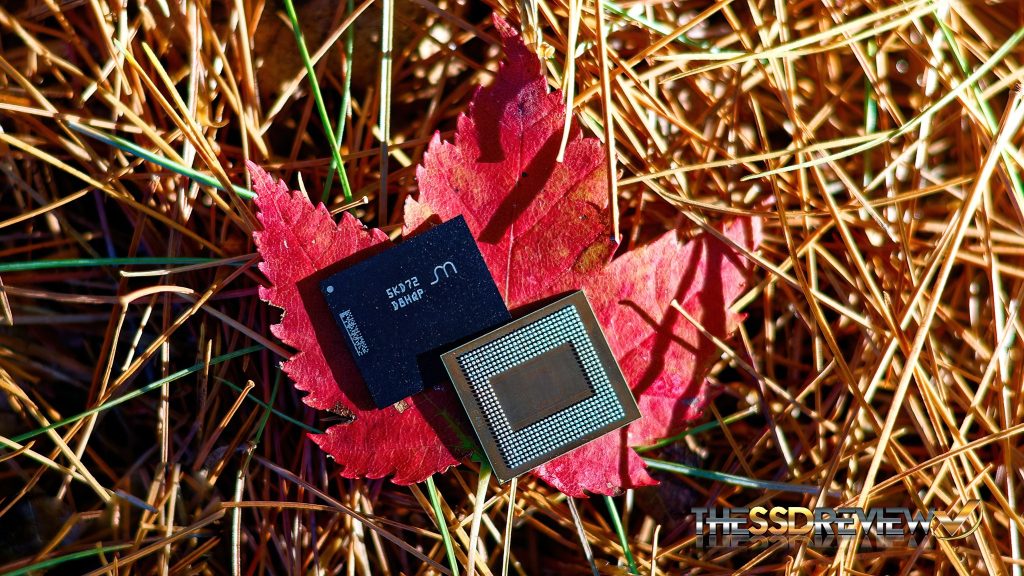

We’re all the time a bit amused when outsized packages arrive, particularly when their contents are surprisingly small. This time was no totally different. The outer field measured 15″ x 8″ x 5″, containing a superbly fitted internal field. Inside, we discovered a big silver anti-static envelope, designed to protect towards electrostatic discharge, moisture, and direct mild; situations these chips ought to by no means be uncovered to. Nestled inside was a two-piece plastic service holding two of Micron’s 1y (1-gamma) LPDDR5X SDRAM chips.
Why ought to this matter to you? Since you’re already holding one thing very comparable in your hand each time you decide up your smartphone. This 1y (1-gamma) LPDDR5X SDRAM chip performs a key function in making your telephone thinner, extra highly effective, and longer-lasting than ever earlier than. However earlier than we dive into what it means in your gadget, let’s take a better have a look at its extremely compact measurement… and the way such a technological feat is even potential.

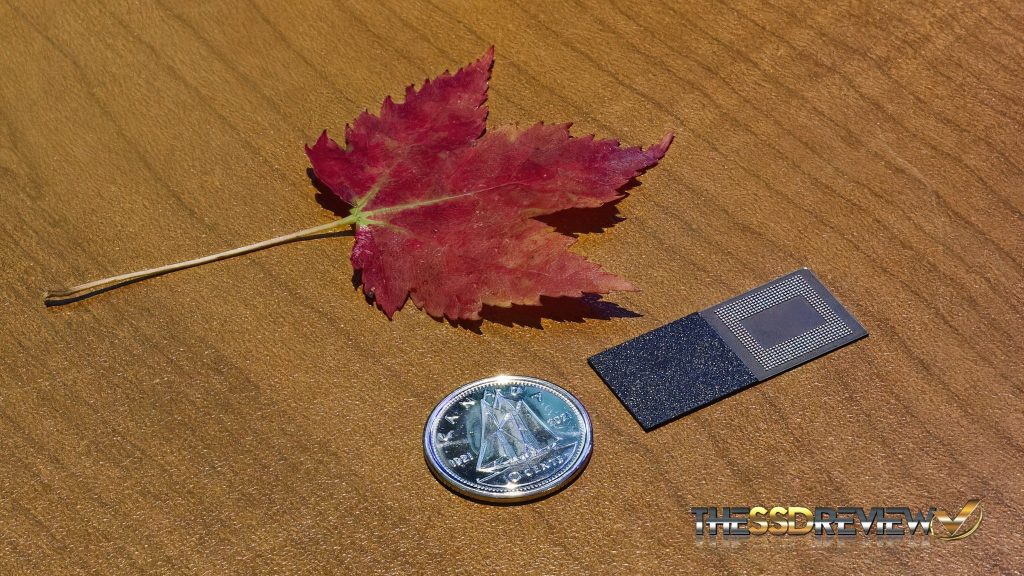

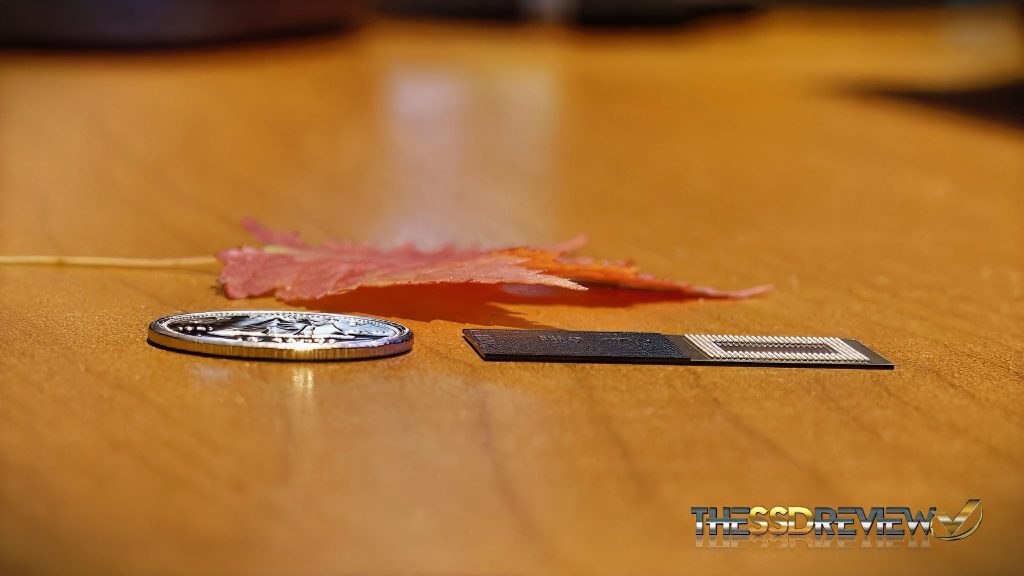

Within the picture, it’s proven subsequent to a Canadian dime and the maple leaf we talked about earlier, providing you with a way of simply how small it truly is. For much more perspective, it’s solely 80% the thickness of a bank card, or roughly the identical as six sheets of normal paper.

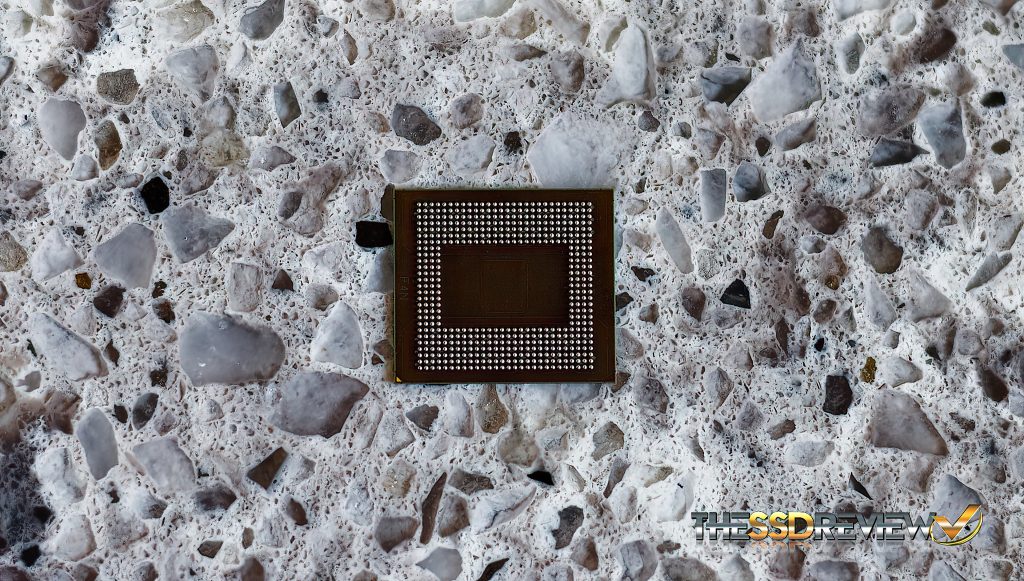

The 1y LPDDR5X SDRAM chip measures simply 14 x 12.4 x 0.61 mm, making it an extremely compact piece of know-how. It contains a 496-ball Effective-Pitch Ball Grid Array (FBGA) on the underside for high-density connections and is 6% thinner than any comparable chip in the marketplace right now.
In case you’ve been following alongside, you’ll know that I think about one in all humanity’s best achievements to be our capability to rework unusual silica sand into silicon wafers, the muse for applied sciences like DRAM, SDRAM, flash reminiscence, SSDs, and CMOS picture sensors. Our current article protecting our tour of Micron’s fabrication facility in Boise, Idaho gives a captivating behind-the-scenes have a look at the know-how we depend on day by day, usually with out even realizing it.

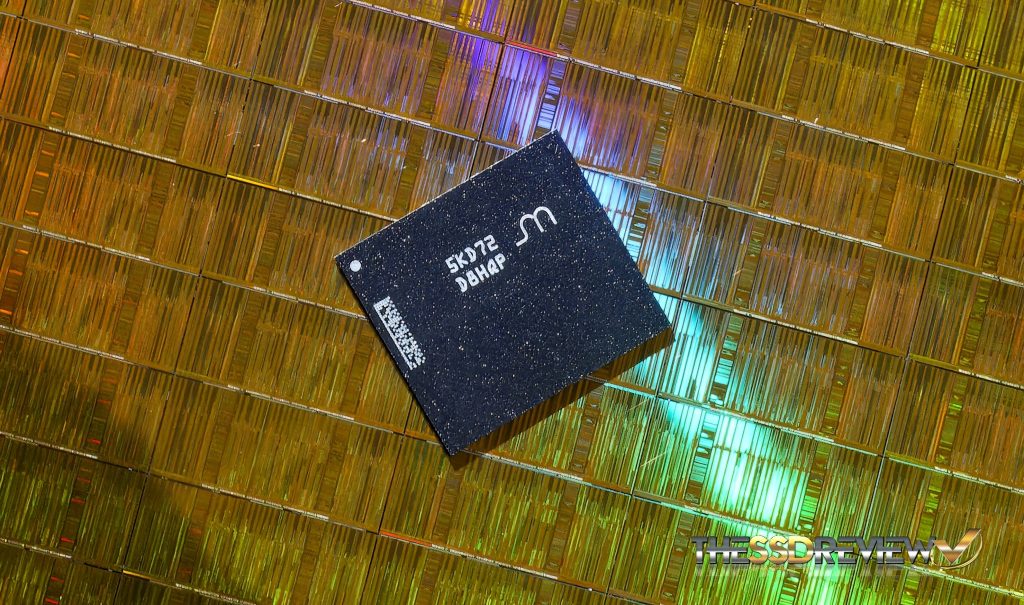

The picture above reveals Micron’s newest 1y (1-gamma) LPDDR5X SDRAM chip resting on a silicon wafer, much like the kind it could have been minimize from, although not the precise one. The wafer pictured has already undergone a part of the manufacturing course of and isn’t a freshly manufactured flash wafer. This cutting-edge chip was produced utilizing Excessive Ultraviolet (EUV) lithography, a course of we’ve beforehand detailed [here].

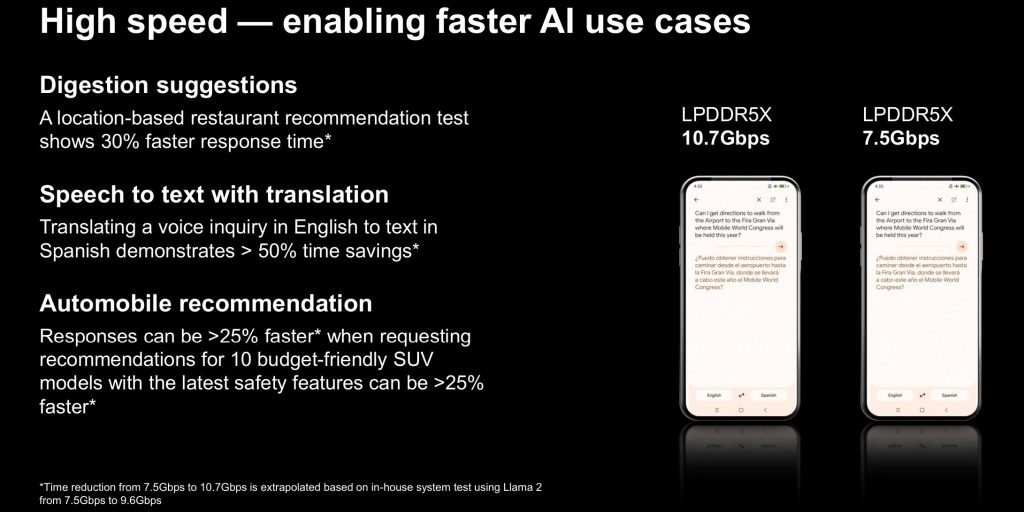

Focusing particularly on the 1y DDR5X SDRAM chip, this cellular element delivers spectacular efficiency with speeds of as much as 10.7Gbps, an 11% enchancment over the earlier technology. It contains a 4-channel structure and achieves a 20% discount in energy consumption. The smaller footprint and enhanced energy effectivity instantly contribute to longer battery life and improved smartphone efficiency, as proven right here:
Consider LPDDR5X SDRAM like constructing a brand new house. When setting up a home, having a devoted room to retailer your instruments makes the work a lot quicker than continually working out to your automobile to seize them. Equally, SDRAM acts as a fast-access storage space for a number of working purposes. This fast retrieval is what permits us to change between apps on our smartphones so easily and swiftly. Micron 1y (1-gamma) LPDDR5X SDRAM simply made issues all that a lot quicker.

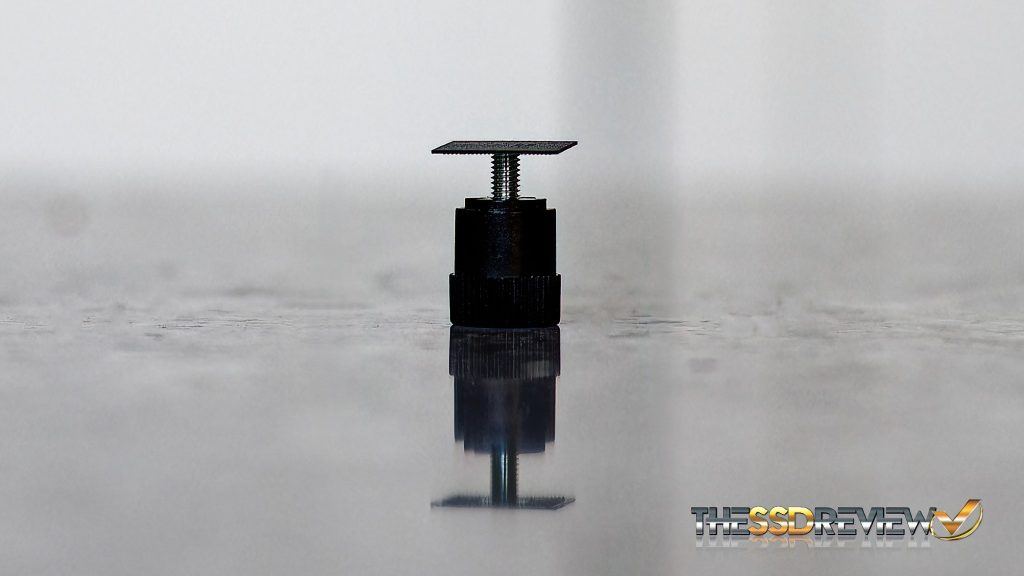

Now, let’s take one last have a look at simply how extremely small the Micron 1y LPDDR5X SDRAM chip actually is. Right here it’s, resting atop the PCIe element screw of our TSSDR Enterprise Check Bench :

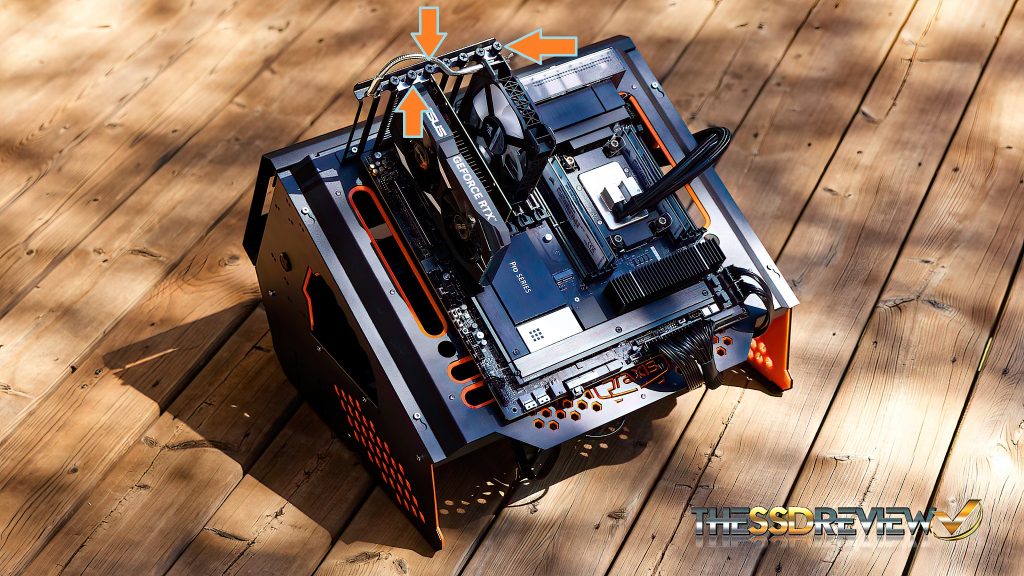

And that is our take a look at bench depicting how really small that screw actually is. Get pleasure from!
