Reproducing facets of the human sense of contact is important for the event of the whole lot from industrial robots to medical gadgets and digital actuality consumer interfaces. Probably the most cost-effective methods to present machines the sense of contact is thru the usage of stress sensors. However on the planet of stress sensors, one dimension doesn’t match all. Generally, they are often tuned to detect very high quality variations in stress, or very giant quantities of stress, however not each. And that signifies that the machines that depend on these sensors wrestle with versatility.
This case undoubtedly has researchers within the subject feeling the stress. However an answer could lastly be shut at hand, because of the work of a bunch of engineers at Jilin College. The thought might not be fully their very own, as they borrowed closely from nature, however their scorpion-inspired stress sensor could also be simply what we have to give machines a extra human-like sense of contact sooner or later.
The pure sensing system of a scorpion (📷: P. Wang et al.)
Scorpions, regardless of their poor eyesight, have a unprecedented potential to understand their environment. That is made doable by two specialised buildings. First are trichobothria, lengthy hair-like buildings that reply to refined modifications in airflow, letting the animal really feel predators or prey transferring close by. Second are slit sensilla, that are sensory neurons beneath tiny cracks within the exoskeleton that convert vibrations within the trichobothria into indicators the nervous system can course of. Collectively, these options enable scorpions to detect each delicate shifts in air currents and robust floor vibrations with spectacular accuracy.
Impressed by these pure programs, the workforce designed a bioinspired piezoresistive stress sensor (BPPS). The system addresses the traditional engineering trade-off between sensitivity and vary by combining two complementary parts: stress traps and flexure suppression models.
On the highest aspect of a silicon chip, the researchers etched stress traps, that are microscopic buildings that focus mechanical power in a lot the identical approach the slits in a scorpion’s exoskeleton funnel vibrations. These traps significantly improve the sensitivity of the sensor, permitting it to register even the faintest pressures. On the underside of the chip, they added flexure suppression models. These had been modeled on the claw-like bases of scorpion hairs, which restrict extra membrane bending and cut back mechanical noise. Within the synthetic model, the suppression models forestall distortions that usually cut back accuracy, thereby extending the linear vary of pressures the system can measure.
The design of the robotic (📷: P. Wang et al.)
The result’s a sensor with each excessive sensitivity and wonderful linearity throughout a large span of pressures, from 0 to 500 kilopascals. In technical assessments, it achieved a sensitivity of 65.56 millivolts per volt per kilopascal and maintained near-perfect linearity (a coefficient of 0.99934). It additionally demonstrated speedy response and restoration instances, in addition to sturdiness over tens of hundreds of cycles.

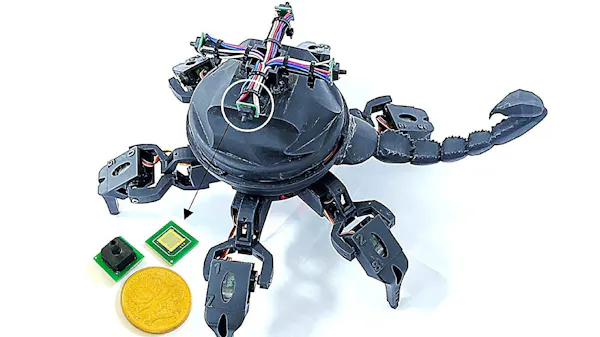

To maneuver past the lab, the researchers built-in the BPPS right into a six-legged robotic and related it to a deep studying community. Very similar to an actual scorpion, the robotic may sense minute air stress modifications round its physique and reply accordingly. In demonstrations, it shortly moved away from giant approaching objects, mimicking predator avoidance, and navigated towards smaller targets resembling prey.
By merging cautious engineering with classes from nature, the workforce has proven how scorpions’ historic survival instruments can information the event of the subsequent technology of high-performance sensors. If broadly adopted, these gadgets may carry machines one step nearer to experiencing the world as dwelling creatures do.
